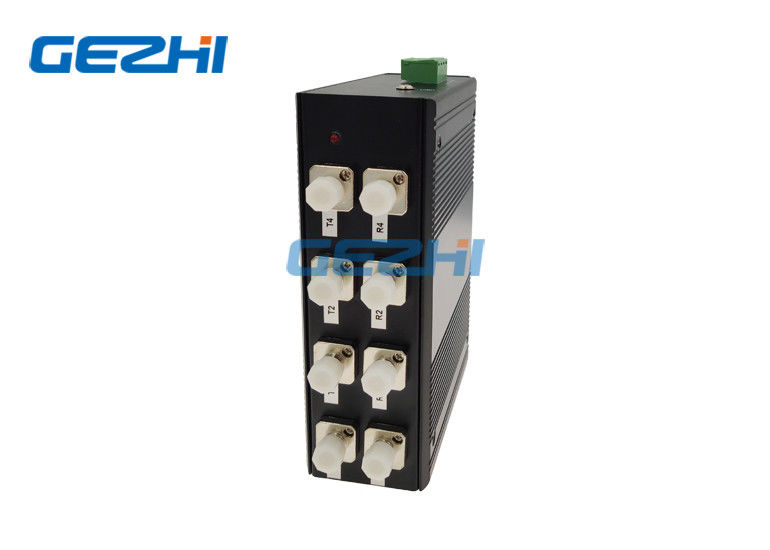

4x4 Bypass Protection Switches Module

4x4 Bypass Protection Switches Module
4x4 Bypass Protection Switches Module

Large Image :  4x4 Bypass Protection Switches Module

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/RoHS/ISO9001
Model Number: GZ-FSW-D2x2B-R
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: paper box with foam
Delivery Time: 5-10 work days
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 50,000pcs per month
Detailed Product Description
Product Name: Protection Switches Port: 4x4
Connector: FC/PC Power Supply: 12~48VDC Or 110~220V AC
Package: Metal Box Wavelength: 1260~1650nm
High Light:

sfp fiber optic transceiver

,

sfp transceiver modules

4x4 Bypass Protection Switches Module



GEEZHI 4x4 Bypass Protection Switches Module is fiber optical components which is a activated via an electrical control signal. The 4x4 Bypass Protection Switches Module offers ultra-high reliability and fast switching speed as well as bi-directional performance.



Features

Applications

  • Bypass Protection Function
  • Low Insertion Loss
  • Short switching time
  • Easy Operation
  • Highly Stable & Reliable
  • R&D in Laboratory
  • System Monitoring
  • Network Security and Monitoring
  • OADM
  • Metropolitan Area Network



4x4 Bypass Protection Switches Module Specification

Parameters Unit GZ-FSW-D2×2B-DIN
Wavelength Range nm 850±40/1300±40 1260~1650
Operating Wavelength nm 850&1300 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.6 Max:1.0
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥30 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 12~48VDC or 110~220V AC
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature -20~+70
Storage Temperature -40~+85
Weight g 16
Dimension mm 142x101x47



4x4 Bypass Protection Switches Module Optical Path

D2x2 Optical Bypass Switch 0



4x4 Bypass Protection Switches Module Order Information

GZ-FSW-D2x2B-DIN-x-xx-x-x-x-xx-x-x

Mode Wavelength Power Supply Control Model Fiber Type Connector
S=SM
M=MM
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others

D=12~48V DC
A=100~220V AC

B= DC+AC Dual power supply

L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC
