4-ports Opto-Mechanical Bypass Switch

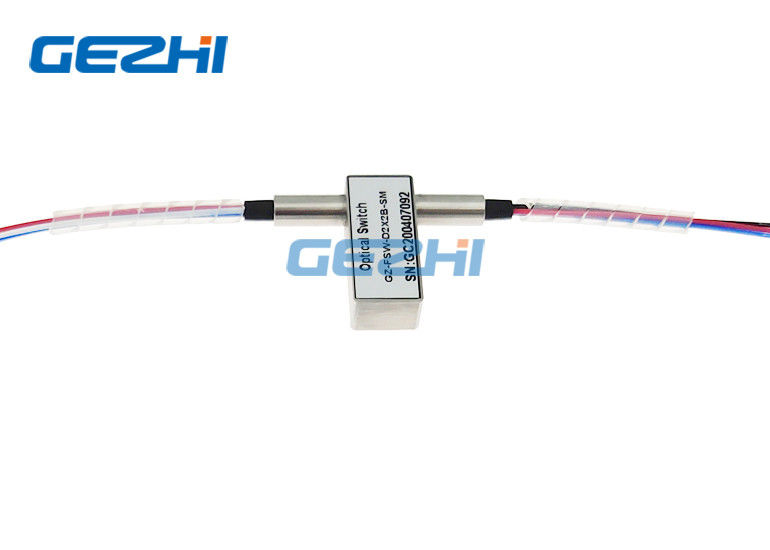

Large Image : 4-ports Opto-Mechanical Bypass Switch

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE RoHS,ISO9001
Model Number:	GZ-FSW-D2x2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Get Latest Price
Packaging Details:	Plastic box
Delivery Time:	5-10 work days
Payment Terms:	T/T, Paypal,Western Union
Supply Ability:	50000 pcs per month

Contact Now

Detailed Product Description

ITEM Name:	Bypass Switch	Fiber Length:	0.5meter
Cables:	0.9mm	Connector:	Customized
Port:	4x4	Signal:	Bi-direction
Highlight:	sfp fiber optic transceiver , sfp transceiver modules

4-ports Opto-Mechanical Bypass Switch

The 4-ports Opto-Mechanical Bypass Switch connects optical channels by redirecting 4 incoming optical signals into 4 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal. The 4-ports Opto-Mechanical Bypass Switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.

Features

Compact design, Miniature size
Low cross talk, Low Insertion Loss
Wide operating wavelength Range
Highly Stable & Reliable
Epoxy-free on Optical Path
Single mode or Multimode optional
Short switching time
Bi-directionalLow optical distortions
Fail-Safe Latching and Non-latching

Applications

Network switching
R&D in Laboratory
Channel Blocking
Module and System Integration
Metropolitan Area Network
Fiber sensor
Channel blocking
System monitoring
Network protection and restoration
Instrumentation, testing, and measurement

4-ports Opto-Mechanical Bypass Switch Specification

Parameters		GZ-D2×2B
Wavelength Range	nm	850±40/1300±40	1260～1650
Operating avelength	nm	850/1300	1310/1490/1550/1625/1650
Insertion Loss	dB	Typ:1.0 Max:1.5	Typ:1.0 Max:1.5
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power Supply	v	3.0 or 5.0
Lifetime	times	≥10⁷
Switch Time	ms	≤8
Transmission Power	mW	≤500
Operating Temperature	℃	-20～+70
Storage Temperature	℃	-40～+85
Weight	g	16
Dimension	mm	(L)27.0×(W)12.0×(H)8.2 customization is available.

4-ports Opto-Mechanical Bypass Switch Pins

Type	State	Pin definition	Power				Condition monitoring
D2x2B			1	5	6	10	2-3	3-4	7-8	8-9
Non-latching	A	P1-P3 P1’-P3’	--	--	--	--	Close	Open	Open	Close
Non-latching	B	P1-P4,P2-P3 P1’-P4’,P2’-P3’	V+	--	--	GND	Open	Close	Close	Open
Latching	A	P1-P3 P1’-P3’	--	--	GND	V+	Close	Open	Open	Close
Latching	B	P1-P4,P2-P3	V+	GND	--	--	Open	Close	Close	Open

4-ports Opto-Mechanical Bypass Switch Order Information

Mode	Wavelength	Voltage Type	Control Model	Fiber Type	Fiber Diameter	Fiber Length	Connector
S=SM M=MM	85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others	3=3V 5=5V	L=Latching N=Non- Latching	5=50/125 6=62.5/125 9=9/125 X=Others	25=250um 90=900um 20=2.0mm 30=3.0mm X=Others	1=1m 2=1.5m X=Others	0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC

4-ports Opto-Mechanical Bypass Switch Optical Route

Status One	Status Two

4-ports Opto-Mechanical Bypass Switch Dimension

Dual 2x2 Multi Mode Mechanical 4x4 Fiberoptic Switch ( Latching Or Non Latching )
