44 Channel 100GHz Dwdm Multiplexer , CATV System Fiber Optic Multiplexer

Large Image : 44 Channel 100GHz Dwdm Multiplexer , CATV System Fiber Optic Multiplexer

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-44CH Athermal AWG Module

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	1pcs in a foam with paper box
Delivery Time:	2~7working days
Supply Ability:	80000Channel per month

Contact Now

Detailed Product Description

Product Name:	Athermal AWG Module	Channel Number:	44 Channels
Wavelength:	ITU Grid	Connector:	LC/SC/FC/ST (PC Or APC)
Fiber Type:	Simplex	Application:	CATV System
High Light:	dwdm multiplexer , dense wave division multiplexer

44 Channel 100GHz Dwdm Multiplexer , CATV System Fiber Optic Multiplexer

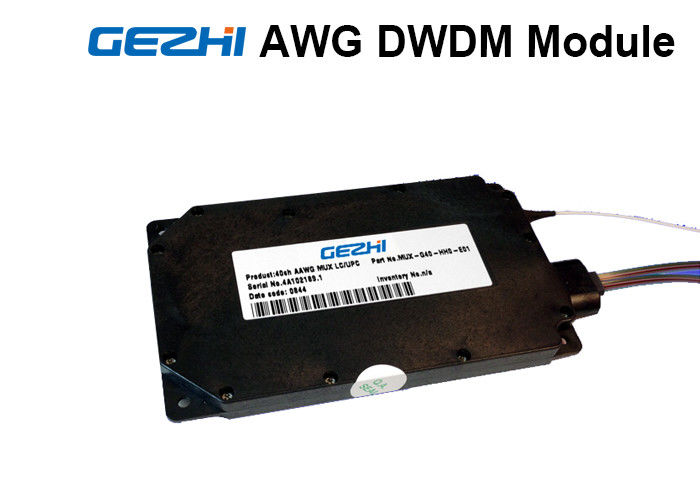

GEZHI Photonics 44-Channel Athermal AWG DWDM Module

GEZHI Athermal AWG (Arrayed Waveguide Grating) is a high-performance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths.

GEZHI Photonics   Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWGs offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package.GEZHI’s athermalization technology simplifies deployment of AWG multiplexers/demultiplexers by DWDM network providers.

Front Panel Details

A Common port:

LC, SC, ST and FC connectors available.

B Monitor port:

Connects measurement/monitoring equipment, such as power meters or network analyzers, to the module outputs. When finished monitoring, disconnect the instruments and the network is left undisturbed
LC, SC, ST and FC connectors available.
Tap percentage is 5% as default, 1%, 2%, 3%, or 10% available on request.

C Express port:

Enables the cascading of two DWDM mux/demux modules, doubling the channel capacity on the common fiber link.
Isolation is less than 15dB as default, 16dB ~40dB available on request.
LC, SC, ST and FC connectors available.

D Standard port 1310nm:

Allows a legacy 1310nm signal to pass. That is to say, it can carry LR optics, LX optics etc.
LC, SC, ST and FC connectors available.

E Mux/Demux port for specific ITU-Grid channels:

LC, SC, ST and FC connectors available.

Item Details

44 channels Athermal AWG DWDM mux and demux
The channel spacing for DWDM is 0.8 nm (100 GHz grid). 1.6nm (200GHz) also available on request.
Aluminum pigtailed module
Protocol transparent (10 Mbps to 100 Gbps)
Distance: Up to 80 km depending on power budget of user equipment
Low insertion loss
Excellent channel isolation
Epoxy-free optical path
Compliant to ITU-T G.657A1 standard.
ISO 9001 manufacturing facility

Mechanical Details for Housing ( Using Aluminum Box)

Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
