Cable Type: | QSFP Copper | Cable Data Rate: | 40Gbps Connector |
---|---|---|---|
A: | QSFP+ Connector | B: | QSFP+ |
Length: | 1 Meter | Wire: | 30 AWG Copper |
Applications: | 40GBASE-CR4 | ||
High Light: | dac hdmi cable,active optical cable |

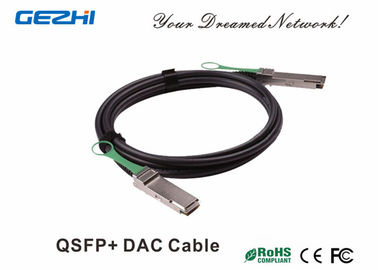

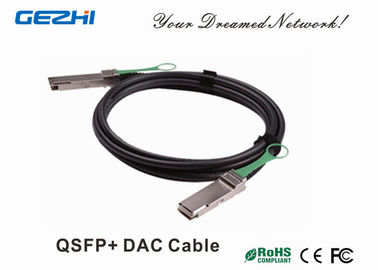

40G Fiber Optic QSFP Cable , Passive QSFP+ QDR DAC Copper Cables
Descriptions
GEZHI QSFP+ passive cable assemblies are high performance,cost effective I/O solutions for 40G LAN, C and SAN applications. The QSFP+ passive copper cables are compliant with SFF-8436, QSFP+ MSA and IEEE P802.3ba 40GBASE-CR4. It is offer a low power consumption,short reach intercon- nect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
Specifications
Cable Type: QSFP Copper Cable
Data Rate: 40Gbps
Connector A: QSFP+
Connector B: QSFP+
Length: 1 meter
Wire: 30 AWG Copper
Applications: 40GBASE-CR4
Features
QSFP+ conforms to the Small Form Factor SFF-8436
4-Channel Full-Duplex Passive Copper Cable Transceiver
Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
Copper link length up to 5m (passive limiting)
High-Density QSFP 38-PIN Connector
Power Supply :+3.3V
Low power consumption: 0.02 W (typ.)
I2C based two-wire serial interface for EEPROM signature which can be customized
Temperature Range: 0~ 70 °C
