Product Name: | Mechanical Optical Switch | Wavelength: | 1260~1650nm |
---|---|---|---|
Channel: | 2x4 (duplex 1x2) | Control Type: | Latching Or Non-latching |
Connector: | LC/SC/FC/ST (PC Or APC) | Application: | Fiber Sensor |
Highlight: | fiber optic switch,optical switch module |

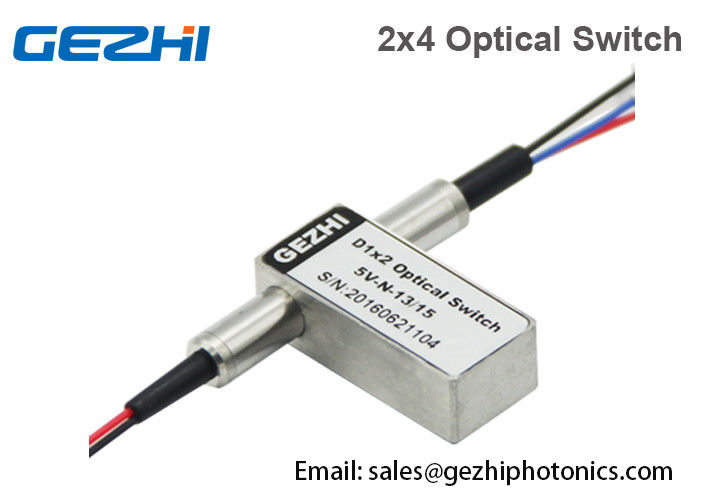

The GEZHI Photonics dual 1x2 (2x4) Fibre Optical switches is equivalent to two single 1x2 fiber optic switches in one switch that change state together (they cannot be switched independently).
Dual 1x2 (2x4) Fibre Optical switches connects optical channels by redirecting an incoming optical signal into a selected output fiber. The GEZHI Photonics Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MS fiberoptic switches are true switching solution for optical networking applications.
Features
Application
Specification
Parameters |
GZ-D1×2 | ||
Wavelength Range | nm | 850±40/1300±40 | 1260~1650 |
Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
Insertion Loss | dB | Typ:1.0 Max:1.5 | Typ:1.0 Max:1.5 |
Return Loss | dB | MM≥30 SM≥50 | |
Crosstalk | dB | MM≥35 SM≥55 | |
PDL | dB | ≤0.05 | |
WDL | dB | ≤0.25 | |
TDL | dB | ≤0.25 | |
Repeatability | dB | ≤±0.02 | |
Power Supply | v | 3.0 or 5.0 | |
Lifetime | times | ≥107 | |
Switch Time | ms | ≤8 | |
Transmission Power | mW | ≤500 | |
Operating Temperature | ℃ | -20~+70 | |
Storage Temperature | ℃ | -40~+85 | |
Weight | g | 16 | |
Dimension | mm | (L)27.0×(W)12.0×(H)8.2 |

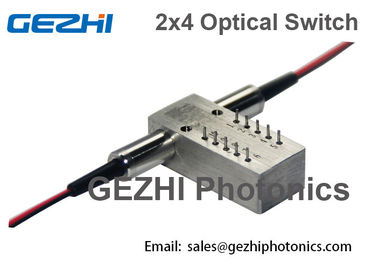

Pins
Type | State | Optical Route | Electric Drive | Status Sensor | ||||||
D1×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | ||
Latching | A | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
P1’-P2’ | ||||||||||
B | P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
P1’-P3’ | ||||||||||
Non-latching | A | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
P1’-P2’ | ||||||||||
B | P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
P1’-P3’ |
Optical Route
Status A | Status B |
|
|
Dimension
Order Information
Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S=SM |
85=850nm |
3=3V |
L=Latching |
5=50/125 |
25=250um |
1=1m |
0=None |
