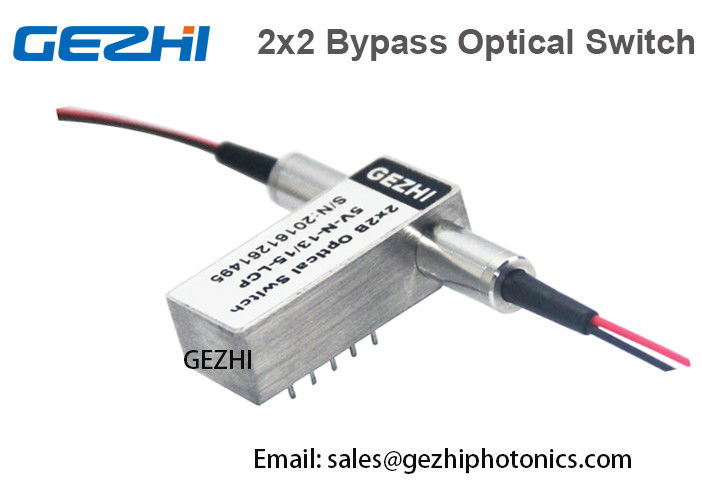

2x2B Opto - Mechanical Fiber Optical Switches Optical Bypass Switch

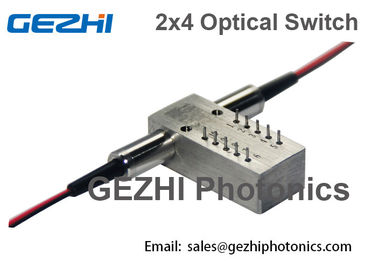

Large Image : 2x2B Opto - Mechanical Fiber Optical Switches Optical Bypass Switch

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-Optical Bypass Switch

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price

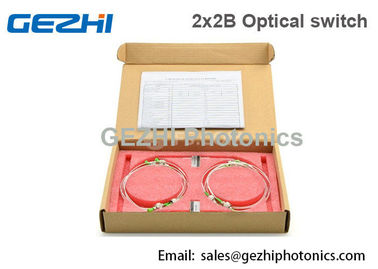

Packaging Details:	2pcs in a foam with paper Box
Delivery Time:	2~7working days
Supply Ability:	60000pcs per month

Contact Now

Detailed Product Description

Product Name:	2x2B Optical Switch	Wavelength:	1310/1550nm
Channel:	2x2	Control Type:	Latching Or Non-Latching
Connector:	LC/SC/FC/ST (PC Or APC)	Application:	OXC
High Light:	fiber optic switch , optical fiber switch

Optical Bypass Switch 2x2B Opto-Mechanical Fiber Optical Switches

The 2x2B Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers.

GEZHI Photonics offers most affordable high performance Opto-Mechanical Fiber Optic Switches. Our Mechanical Fiber Optic Switches are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Currently configurations includes 1x1, 1x2, 1x4, 1x8, 2x2, 2x2A, 2x2B, and 2x2BA as well as Dual 2x2 and Dual 2x2 Bypass configurations for single mode or multimode fibers. For more information about Opto-mechanical fiber optic switches, please e-email sales@gezhiphotonics.com .

Features

Compact design, Miniature size
Short switching time
Bi-directionalLow optical distortions
Low cross talk, Low Insertion Loss
Wide operating wavelength Range
Seam-seal package
Highly Stable & Reliable
Epoxy-free on Optical Path
Single mode or Multimode optional
Fail-Safe Latching and Non-latching

Applications

Network switching
R&D in Laboratory
Fiber sensor
Channel blocking
System monitoring
Channel Blocking
Module and System Integration
Metropolitan Area Network
Network protection and restoration
Instrumentation, testing, and measurement

Specifications

Parameters	Multimode	Singlemode	Unit
Wavelength Range	650 ～ 1310	1260 ～ 1670	nm
Testing Wavelength	650/780/850/980/1064/1310	1310/1490/1550/1625/1650	nm
Insertion Loss	Typ: 0.6, Max: 1.0	Typ: 0.5, Max: 0.8	dB
Return Loss	≥ 30	≥ 50	dB
Crosstalk	≥ 35	≥ 50	dB
PDL	≤ 0.05		dB
WDL	≤ 0.25		dB
TDL	≤ 0.25		dB
Repeatability	≤ ±0.02		dB
Power supply	3.0 or 5.0		v
Lifetime	≥ 10⁷		Cycle
Switch Time	≤ 8		ms
Transmission Power	≤ 500		mW
Operation Temperature	-40 ～ +85		℃
Storage Temperature	-40 ～ +85		℃
Weight	16		g
Dimension	(L)27 x (W)12.6 x (H)8.5(±0.2)		mm

Note:
1. All parameters are for device without connectors.
2.Special specifications can be customized according to customer requirements.

Optical Route

Fs OSW-2x2-1.jpg

Mechanical Dimensions (Unit: mm)

Fs OSW-2x2B.jpg

Electrical Driving Requirements

Optical Path		Electric Drive				Sensor Status
2x2B		1	5	6	10	3－4,7－8	2－3,8－9
Latching	P1-P3	N/A	N/A	GND	+5V	OPEN	CLOSE
Latching	P1-P4 / P2-P3	+5V	GND	N/A	N/A	CLOSE	OPEN
Non- Latching	P1-P3	N/A	N/A	N/A	N/A	OPEN	CLOSE
Non- Latching	P1-P4 / P2-P3	+5V	N/A	N/A	GND	CLOSE	OPEN

Functional Diagram

Specification	Voltage	Current	Resistor
5V Latching	4.5~5.5	36~44mA	125Ω
5V Non-Latching	4.5~5.5	26~32mA	175Ω
3V Latching	2.7~3.3	54~66mA	50Ω
3V Non-Latching	2.7~3.3	39~47mA	70Ω

Order information: FSW-2x2B－A－B－C－D－E－F－G

GEZHI Photonics provides customized design optical switches to meet special control and applications. Also, GEZHI Photonics offers modular assemblies that integrate other components to form a full function modules or subsystem. For details, please contact GEZHI Photonics at sales@gezhiphotonics.com .

Question:

1. Number of switching ports: 1, 2, 3, 4, 8, or 12.
2. What wavelengths are you using?
3. Which core/cladding size are you using?
4. What type of connectors do you need?
5. How long should the fibers be? What size jacketing?
6. Are there any other special requirements?

A	B	C	D	E	F	G
Mode	Wavelength	Voltage	Control Model	Fiber Diameter	Fiber Length	Connector
SM: 9/125um	85: 850nm	3: 3V	L: Latching	25: 250um	05: 0.5m	OO: None
M5: 50/125um	13: 1310nm	5: 5V	N: Non-Latching	90: 900um	10: 1.0m	FP: FC/PC
M6: 62.5/125um	14: 1490nm	S: Special	S: Special	20: 2.0mm	15: 1.5m	FA: FC/APC
S: Special	15: 1550nm			30: 3.0mm	S: Special	SP: SC/PC
	162: 1625nm			S: Special		SA: SC/APC
	165: 1650nm					LP: LC/PC
	13/15: 1310/1550nm					LA: LC/APC
	S: Special					S: Special

For example: FSW-2x2B－M6－13－5－L－S－15－FP
