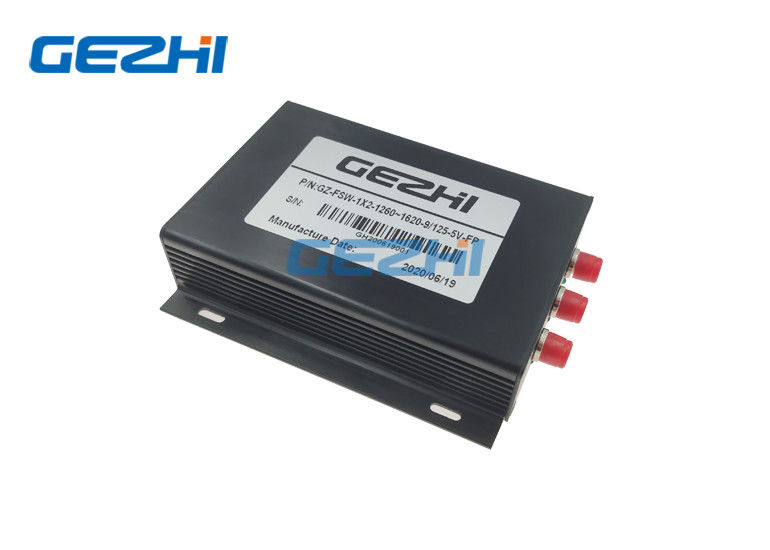

2x1 Broad Wavelength Fiberoptic Switch

2x1 Broad Wavelength Fiberoptic Switch
2x1 Broad Wavelength Fiberoptic Switch

Large Image :  2x1 Broad Wavelength Fiberoptic Switch

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: GZ-DSW-1x2-R-FA
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: paper box with foam
Delivery Time: 5-10 work days
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 50,000pcs per month
Detailed Product Description
Product Name: Broad Fiberoptic Switch Package: Metal Box
Connector: FC/APC Wavelength: 1260~1650nm
Control Mode: Button&RS232 Application: Wavelength Router
High Light:

sfp optical transceivers

,

sfp transceiver modules

2x1 Broad Wavelength Fiberoptic Switch



GEZHI 2x1 Broad Wavelength Fiberoptic Switch connects optical channels by redirecting an incoming optical signal into a selected output optical fiber.



GEZHI 2x1 Broad Wavelength Fiberoptic Switch has two version for choice. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The switch has integrated electrical position sensors.



Features

Applications

  • High Isolation
  • High Reliability
  • Unmatched Low Cost
  • Low Optical Distortions
  • Epoxy-Free Optical Path
  • Channel Blocking
  • Configurable Add/Drop
  • System Monitoring
  • Instrumentation



2x1 Broad Wavelength Fiberoptic Switch​ Specification

Parameters   GZ-DSW-1x2
Wavelength Range nm 532~1064nm 1260~1650
Operating Wavelength nm 532/650/780/850/980 nm 1310/1490/1550/1625 nm
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.6 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply v 5V / 500mA
Control Mode / Button, RS232
Lifetime times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature -20~+70
Storage Temperature -40~+85
Dimension mm (L)104.0×(W)120.0×(H)28

Note: Customization is available.



2x1 Broad Wavelength Fiberoptic Switch​ Order Information

GZ-DSW-1x2-x-xx-x-x-xx

Mode Wavelength Control Model Fiber Type Connector

S=SM

M=MM

85=850nm

13=1310nm

15=1550nm

13/15=1310/1550nm

X=Others

L=Latching

N=Non- Latching

5=50/125

6=62.5/125

9=9/125

X=Others

FP=FC/PC

FA=FC/APC

X:Others



2x1 Broad Wavelength Fiberoptic Switch​ Panel diagram

1x2 Mechanical Optical Switch Module 0



2x1 Broad Wavelength Fiberoptic Switch​ Optical Route

Status One Status Two


2x2 Bypass Mechanical Fiber Optic Switch 1310 / 1550nm Latching OXC system




2x2 Bypass Mechanical Fiber Optic Switch 1310 / 1550nm Latching OXC system
