Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Guangdong, China (Mainland) | Brand Name: | GEZHI |
|---|---|---|---|
| Nam: | Optical Switch | Typ: | GZ-1*N Optical Switch |
| Wavelength: | 1260-1650nm | Voltage Type: | 3V/5V |
| Model: | Single Mode | Loose Tube: | 0.9/2.0/3.0mm |
| Connector: | LC/FC/SC/ST | Fiber Length: | 1m/customized |
| Control Model: | Latching/Non-latching | ||
| High Light: | fiber optic switch,optical fiber switch |
||

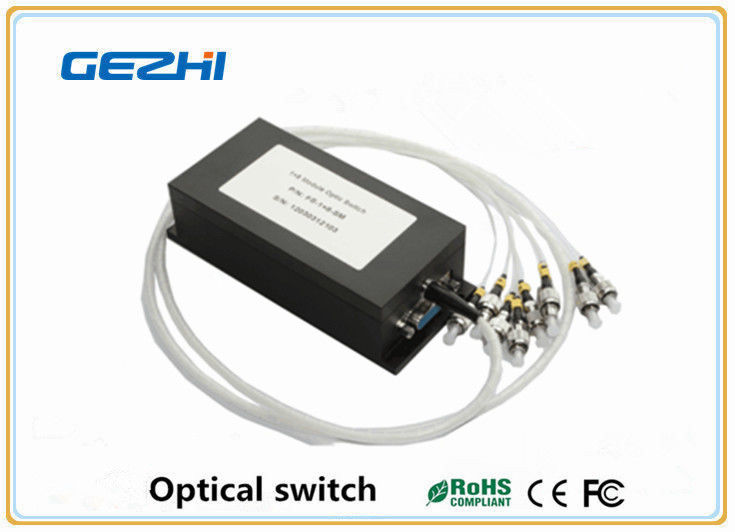

1x N Single mode Optical Switch Fiber Optics Components for telecommunications
Description
1×N Optical switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Features
♦ More Than 128 Channels
♦ Low Loss and High Reliability
♦ Parallel Interface (TTL)
♦ Modularized Design
♦ Epoxy-free on Optical Path
Applications
♦ Ring Network
♦ Remote Monitoring in Optical Network
♦ Testing of Fiber, Optical Component
Technical Paremeter
| Parameters | Unit | GZ-FSW-1×N | |||
| Insertion Loss | dB | 1 < N ≤ 45 | 45 < N ≤ 88 | 88 < N ≤ 128 | |
| Typ: 0.8 Max: 1.0 | Typ: 1.2 Max: 1.5 | Typ: 1.5 Max: 1.8 | |||
| Wavelength Range | nm | 850±40 / 1300±40 | 1260 ~ 1650 | ||
| Test Wavelength | nm | 850 / 1300 | 1310 / 1550 | ||
| Return Loss | dB | MM ≥ 30 SM ≥ 50 | |||
| Crosstalk | dB | ≥ 55 | |||
| PDL | dB | ≤ 0.05 | |||
| WDL | dB | ≤ 0.25 | |||
| TDL | dB | ≤ 0.25 | |||
| Repeatability | dB | ≤ ±0.05 | |||
| Durability | Cycles | ≥ 10 Million | |||
| Switching Time | ms | ≤ 10 (Sequence switch time of adjacent channel) | |||
| Optical Power | mW | ≤500 | |||
| Operating Temperature | ℃ | -20 ~ +70 | |||
| Storage Temperature | ℃ | -40 ~ +85 | |||
| Relative Humidity | % | 5 ~ 95 | |||
| Dimension | mm | 135×40×32 (N≤4) | 135×64×32 (N≤12) | 184×78×36 (N≤16) | |
| 184×78×66 (N≤45) | 184×156×66 (N≤88) | 184×220×66 (N≤128) | |||
| 140×77.5×32 (N≤16) | 140×77.5×64 (N≤32) | ||||
Ordering Information
| Channel | Fiber Type | Test Wavelength | Tube Type | Fiber Length | Connector |
| 1 ~ 128 | SM: SM, 9/125 M5: MM, 50/125 M6: MM, 62.5/125 X: Others |
850: 850nm 1310: 1310nm 1550: 1550nm 13/15:1310/1550nm X:Others |
90: 900um 20: 2.0mm 30: 3.0mm X: Others |
05: 0.5m 10: 1.0m 15: 1.5m X: Others |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others |
