1x2 Filter Coarse Wavelength Division Multiplexer

1x2 Filter Coarse Wavelength Division Multiplexer
1x2 Filter Coarse Wavelength Division Multiplexer

Large Image :  1x2 Filter Coarse Wavelength Division Multiplexer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-1550nm FWDM Device
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 1pcs in a foam with paper box
Delivery Time: 2~7working days
Supply Ability: 80000Channel per month
Detailed Product Description

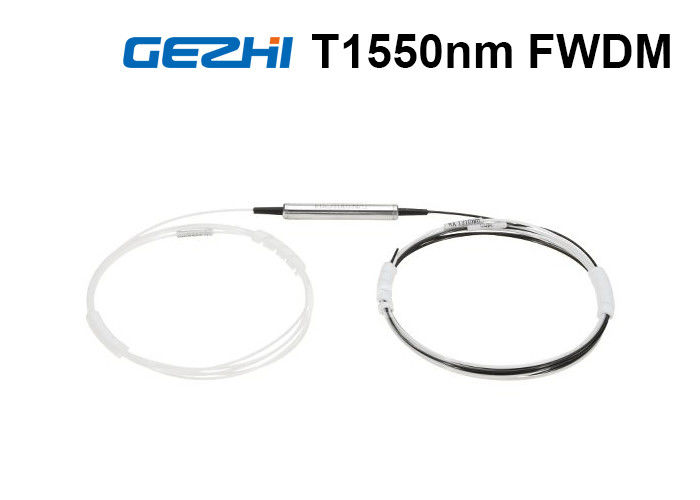

Product Name: FWDM WDM Filter Wavelength: Pass 1550nm Reflect 1310&1490nm
Package: Steel Tube Connector: LC/SC/FC/ST (PC Or APC)
Fiber Lenght: 1m, 2m, Or Other Application: Transmitters And Fiber
High Light:

coarse wavelength division multiplexer

,

cwdm multiplexer

1x2 Filter Coarse Wavelength Division Multiplexer



FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.

GEZHI Photonics provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".

Specification:

Type FWDM
Operating Wavelength
T: transmission wavelength
R: reflection wavelength
1310±50,1490±10, 1550±10
1610±10, 1625±25, 1650±20
nm T1550 R1310/1490
T1490 R1310/1550
T1310 R1490/1550
T1550/1610 R1310/1490
T1550/1625 R1310/1490
T1625 R1310/1490/1550
T1650 R1310/1490/1550
Transmission insertion loss dB

≤0.80

Reflection insertion loss dB ≤0.60
Transmission channel isolation dB ≥30
Reflection channel isolation dB

≥17

PDL dB

≤0.1

Wavelength thermal stability nm/℃ ≤0.003
Insertion loss thermal stability dB/℃ ≤0.005
Directivity dB ≥55
Return loss dB ≥45
Operating temperature

-20~+70

Storage temperature -40~+85

Note: 1. Customization is available.

2. pecified without connector, and add an additional 0.2dB loss per connector.


Item Details
  • Pass(Transmission)Channel: 1550nm
  • Reflection Channel: 1310nm and 1490nm
  • High Isolation, Reliability and channel isolation
  • Low Insertion loss and excellent environmental reliability
  • RoHS Compliant



Package Type
  • Glass Tube Package for 250um bare fiber
  • Steel Tube package for 250um bare fiber and 900um fiber
  • ABS box for 900um, 2.0mm and 3.0mm fiber
  • Note: 250um bare fiber is too finne to be equiped with connector
Fs FS-FWDM-T31R551.jpg Fs FS-FWDM-T31R552.jpg
Mechanical Drawing
Fs 12345.jpg



Picture A is for T13/R15, T14/R1315, T1415/R13 FTTX Filter WDM
Picture B is for T15/R13, T13/R1415, T15/R1314, T1314/R15 FTTX Filter WDM





Application
Fs FTTH-network access.jpg
