Product Details:
Payment & Shipping Terms:
|
| Form Factor: | SM Optical Switch | Fiber Length: | 0.3meter |
|---|---|---|---|
| Connector: | Customized | Type: | Non-latching |
| Voltage: | 3V | Wavelength: | 1310&1550nm |
| High Light: | sfp optical transceivers,sfp transceiver modules |
||

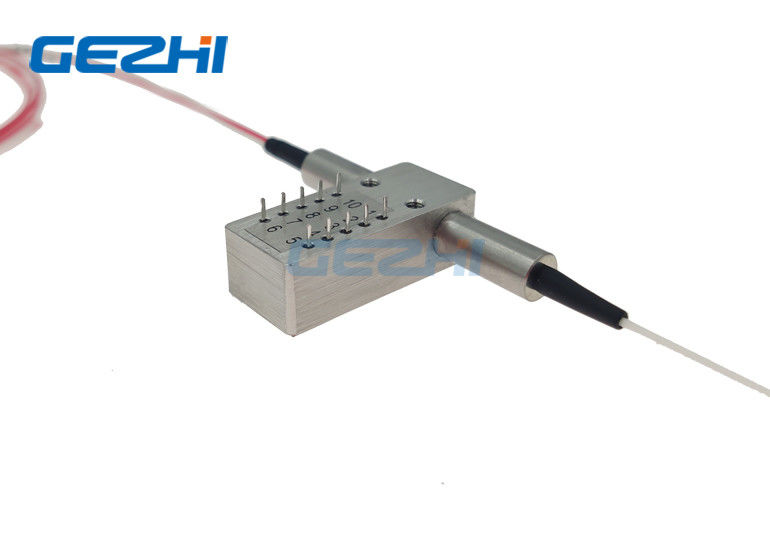

1x2 1310/1550nm SM Optical Switch
GEZHI 1x2 1310/1550nm SM Optical Switch support wideband wavelength at 1260nm to 1650nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The 1x2 1310/1550nm SM Optical Switch are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
|
Features |
Applications |
|
|
Specifications
| Model | / | Value |
| Operating wavelength | nm | 1260~1620 |
| wavelength | nm | 1310&1550 |
| Insertion loss | dB | Typ:0.5 Max:1.0 |
| Return loss | dB | SM≥50 |
| Cross talk | dB | SM≥55 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.25 |
| Repeatability | dB | ≤±0.02 |
| Voltage | v | 3.0 or 5.0 (+/-0.5) |
| Operating life | Time | ≥107 |
| Switch time | ms | ≤8 |
| Power handling | mW | ≤500 |
| Operating temperature | ℃ | -20~+70 |
| Storage temperature | ℃ | -40~+85 |
| Size | mm | 27.0×12.6×8.0 |
Optical Route
| Status One | Status Two |
|
|
|
Ordering Information
GZ-FSW-1x2-X-XX-X-X-X-XX-X-XX
| X | XX | X | X | X | XX | X | XX |
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
|
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LC/APC X=Others |
