ITEM Name: | CWDM Multiplexer | Wavelength: | 1310~1610nm |
---|---|---|---|
Line: | Dual Fiber | Package: | 19" 1U Rack |
Connector: | LC/UPC | Application: | Data Center |
High Light: | sfp optical transceivers,sfp fiber optic transceiver |

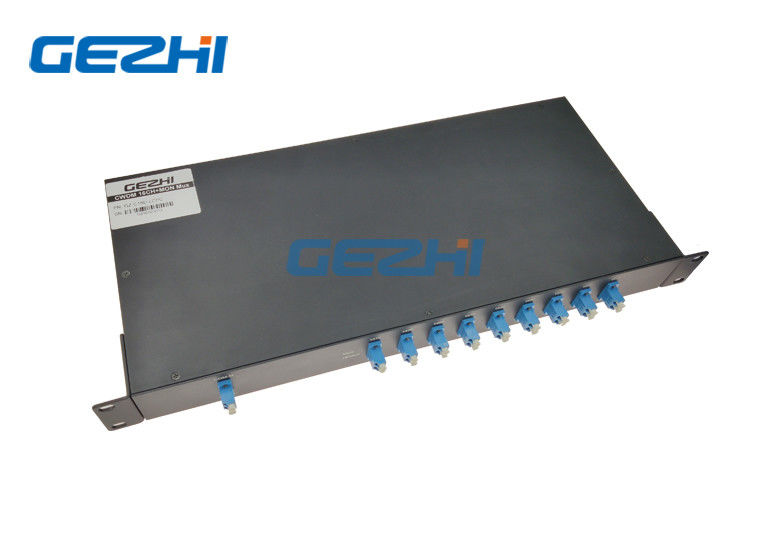

1x16 CWDM Multiplexer Modules LC/UPC connector
GEZHI Coarse Wavelength Division Multiplexing (CWDM) is the use of the Fiber Optical Multiplexer to different wavelengths of light signals multiplexed to a single optical fiber for transmission, at the receiving end of the link, with the Fiber Optical Multiplexer fiber mixed signal is decomposed into different wavelengths signal, connected to the respective receiving apparatus.
1x16 CWDM Multiplexer Modules LC/UPC connector over duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability and with operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.
Features |
Applications |
|
|
Specifications
Parameter | 4 Channel | 8 Channel | 18 Channel | ||||
Mux | Demux | Mux | Demux | Mux | Demux | ||
Channel Wavelength (nm) | 1270~1610 | ||||||
Center wavelength Accuracy (nm) | ±0.5 | ||||||
Channel Spacing (nm) | 20 | ||||||
Channel Passband (@-0.5dB bandwidth (nm) | >13 | ||||||
Insertion Loss (dB) | ≤1.6 | ≤2.5 | ≤3.0 | ||||
Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
Channel Ripple (dB) | 0.3 | ||||||
Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
Inertion Loss Temperature Sensitivity (dB/°C) | <0.005 | ||||||
Wavelength Temperature Shifting (nm/°C) | <0.002 | ||||||
Polarization Dependent Loss (dB) | <0.1 | ||||||
Polarization Mode Dispersion | <0.1 | ||||||
Directivity (dB) | >50 | ||||||
Return Loss (dB) | >45 | ||||||
Maximum Power Handling (mW) | 300 | ||||||
Opterating Temperature (°C) | -20~+75 | ||||||
Storage Temperature (°C) | -40~85 | ||||||
Package dimension (mm) | 19" 1U Rack Mount |
Above specification are for device without connector
