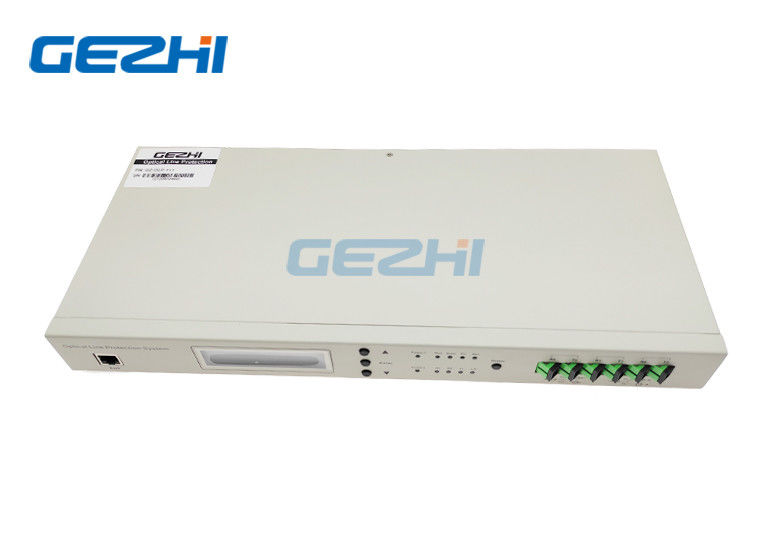

1+1 Optical Line Protection System

1+1 Optical Line Protection System
1+1 Optical Line Protection System

Large Image :  1+1 Optical Line Protection System

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: OLP-1+1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: Plastic box
Delivery Time: 5-10 work days
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 1,000pcs per month
Detailed Product Description
Product Name: OLP Type: 1+1
Wavelength: 850nm Distance: 550meter
Connector: Dual LC DOM: With
High Light:

sfp fiber optic transceiver


sfp transceiver modules

1+1 Optical Line Protection System


Optical Line Protection system (OLP) uses vacant optical fiber from different route to build a backup path. by real-time monitoring the power status in working fiber, it can automatically switch from working fiber to backup fiber when the power value of working fiber lower than a user defined threshold . OLP will provide you a more reliable, flexible and high secure optical transmission network .it is widely used for protecting backbone and important business line.



  • Reduce interrupt time of communication and improve maintenance efficiency with quickly recovering communication.
  • Remarkably reduce damage to network caused by fiber failure.
  • Increase network reliability and improve service quality.
  • Harmless switch between working path and secondary path and convenient for line overhaul and cutover.
  • Real-time monitoring power level of fiber.
  • Support remote control, easy management and maintenance.
  • Transparent transmission.


  1:1 1+1 1-1
work working wavelength nm 1310/1550nm
monitoring power range dbm 23-50
monitoring power accuracy db 0.25
monitoring power resolution db 0.01
return loss db 55
pdl db 0.05
wdl db 0.1
insertion loss db tx<1.2rx<1.2 tx<4rx<1.2 <1.2
switching time ms <35 <15 <15
durability(life) times >107
operating temperature -10+60c
storage temperature -20+75c
power supply v dc(36-72)v and ac(85-264)v/50~60hzdual power supply
power-down condition hold in working path or switch to backup path
optical connectors sc/pc
size standard 19' 1u/4u


Ordering information

  ordering type
1u GZ-OLP-1U-1:1 GZ-OLP-1U-1+1 GZ-OLP-1U-1-1
4u chassis GZ-OLP-4U
module GZ-OLP-M-1:1 GZ-OLP-M-1+1 GZ-OLP-M-1-1
4u OLP system with the chassis (including power module and manage module) and pluggable module.
