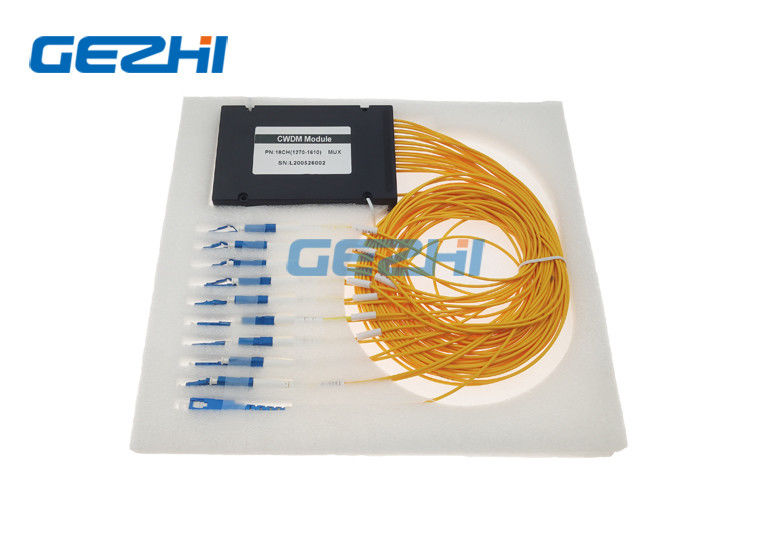

16CH Wave Division Multiplexer
GEZHI 16CH Coarse wave division multiplexing (CWDM) technology was developed as a way to increase the bandwidth capacity of fiber-optic data cabling. CWDM multiplexes multiple optical carrier signals into a single optical fiber by using different wavelengths of light to carry each individual signal. The wavelength of 16CH Wave Division Multiplexer is 1260~1620nm for custom choice. Its also can be add monitor port and 1310nm grey port as requirement.
Features |
Applications |
|
|
16CH Wave Division Multiplexer Specification
Specifications
Parameter | 4 Channel | 8 Channel | 18 Channel | ||||
Mux | Demux | Mux | Demux | Mux | Demux | ||
Channel Wavelength (nm) | 1270~1610 | ||||||
Center wavelength Accuracy (nm) | ±0.5 | ||||||
Channel Spacing (nm) | 20 | ||||||
Channel Passband (@-0.5dB bandwidth (nm) | >13 | ||||||
Insertion Loss (dB) | ≤1.6 | ≤2.5 | ≤3.5 | ||||
Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
Channel Ripple (dB) | 0.3 | ||||||
Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
Inertion Loss Temperature Sensitivity (dB/°C) | <0.005 | ||||||
Wavelength Temperature Shifting (nm/°C) | <0.002 | ||||||
Polarization Dependent Loss (dB) | <0.1 | ||||||
Polarization Mode Dispersion | <0.1 | ||||||
Directivity (dB) | >50 | ||||||
Return Loss (dB) | >45 | ||||||
Maximum Power Handling (mW) | 300 | ||||||
Opterating Temperature (°C) | -5~+75 | ||||||
Storage Temperature (°C) | -40~85 | ||||||
Package dimension (mm) | L100 x W80 x H10 or L140xW115xH18 |
CWDM | Channel Spacing | Number of Channels | Configuration | 1st Channel | Fiber Type | Fiber Length | In/Out Connector |
C=CWDM Grid | 04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel |
M=Mux D=Demux O=OADM |
27=1270nm …… 47=1470nm 49=1490nm …… 61=1610nm SS=special |
1=Bare fiber 2=900um loose tube 3=2mm Cable 4=3mm Cable |
1=1m 2=2m S=Specify
|
0=None FA=FC/APC =FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
