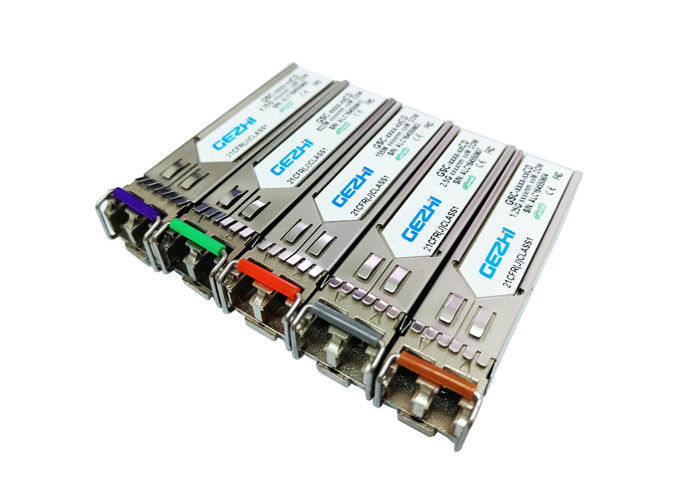

1470nm CWDM SFP Fiber Module For SMF LC

1470nm CWDM SFP Fiber Module For SMF LC

The GEZHI CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications on the CWDM SFP 1270, CWDM SFP 1290, CWDM SFP 1310, CWDM SFP 1330, CWDM SFP 1350, CWDM SFP 1370, CWDM SFP 1390, CWDM SFP 1410, CWDM SFP 1430, CWDM SFP 1450, CWDM SFP 1470, CWDM SFP 1490, CWDM SFP 1510, CWDM SFP 1530, CWDM SFP 1550, CWDM SFP 1570, CWDM SFP 1590, CWDM SFP 1610. wavelength.SFP transceivers are designed to support SONET/SDH, Gigabit Ethernet, Fibre Channel, and other communications standards SFP transceivers are available with a variety of different transmitter and receiver types, allowing users to select the appropriate transceiver for each link to provide the required optical reach over the available optical fiber. SFP transceivers are commercially available with capability for datarates up to 10 Gbit/s SFP+.

Features:

• Data-rate of 1.25Gbps operation
• 18 CWDM DFB wavelengths laser and PIN photodetector for 40km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature range of 0°C to +70°C(Commercial)

Application

• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

Specification:

Competitive Advantages:

1. Excellent quality and 3 years warranty time
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
