Product Details:
Payment & Shipping Terms:
|
| Product Name: | SFP Fiber Module | Datarate: | 1000base |
|---|---|---|---|
| Wavelength: | 1310nm | Distance: | 10km |
| Connector: | Duplex LC | DDM/DOM: | Yes |
| High Light: | sfp fiber optic transceiver,sfp transceiver modules |
||

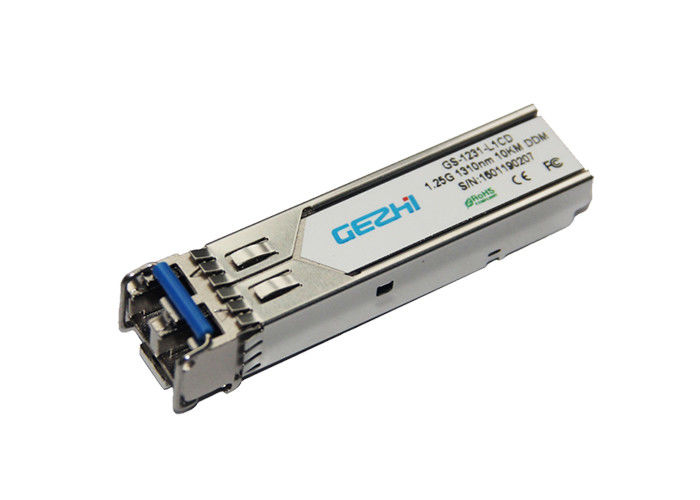

1310nm Wavelength Optical Transceiver
1000BASE-LX/LH SFP transceiver module MMF & SMF 1300nm wavelength 10km dual LC/PC
The 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, 10km, dual LC/PC connector is Functional in its intended equipments. Every SFP is environmentally tested in its specific port/platform prior to shipping to ensure that they are in perfect physical and working condition. All our transceivers come with a lifetime warranty and lifetime technical support.
Features:
♦ Dual data-rate of 1.25Gbps/1.063Gbps operation
♦ 1310nm FP laser and PIN photodetector for 10km transmission
♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
♦ Digital Diagnostic Monitoring:
♦ Internal Calibration or External Calibration
♦ +3.3V single power supply
♦ Compatible with SONET OC-24-LR-1
♦ Compatible with RoHS
♦ Operating case temperature range of 0°C to +70°C(Commercial)
Application
♦ Gigabit Ethernet
♦ Router/Server interface
♦ Fiber Channel
♦ Switched backplane applications
♦ Switch to Switch interface
♦ Other optical transmission systems
Specification:
| P/N | GS-1231-L1CD |
| Datarate | 1.25Gbps |
| Wavelenght | 1310nm |
| Distance | 10km |
| Transmitter | FP |
| Receiver | PIN |
| DDM/DOM | Yes |
| Media | SMF |
| Operating Temperature | 0°C to +70°C |
Competitive Advantages:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
