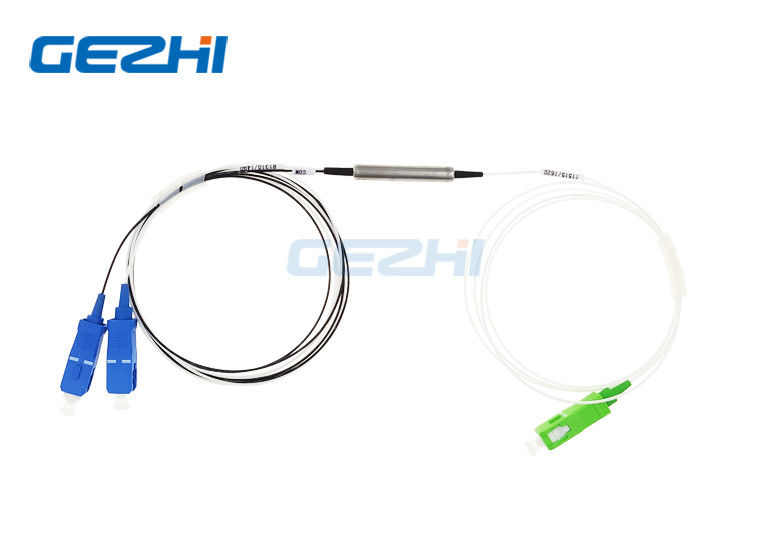

1310/1550/1490nm Fwdm Filter WDM

1310/1550/1490nm Fwdm Filter WDM
1310/1550/1490nm Fwdm Filter WDM

Large Image :  1310/1550/1490nm Fwdm Filter WDM

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: FWDM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: Plastic box
Delivery Time: 5-8 work days
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 100000 Channel per month
Detailed Product Description
Features: Low IL Product Name: FWDM Filter
Wavelength: T1550R1310&1490 Package: Stainless Steel Tube
Length: 1meter Application: FTTH
High Light:

sfp fiber optic transceiver

,

sfp transceiver modules

1310/1550/1490nm Fwdm Filter WDM



1310/1550/1490nm Fwdm Filter WDM is based on thin film filter technology. The device features low insertion loss, epoxy free optical path, high extinction ratio, high reliability and high stability.



Features

Applications

  • Low insertion loss
  • Low PDL
  • RoHS compliant
  • Optical path epoxy free
  • WDM system
  • CATV
  • FTTH



Specifications of 1310/1550/1490nm Fwdm Filter WDM



Parameters Unit I-FWDM Device
Operating Wavelength
T: transmission wavelength
R: reflection wavelength
1310±50,1490±10, 1550±10
1610±10, 1625±25, 1650±20
nm 1 T1550 R1310/1490
2 T1490 R1310/1550
3 T1310 R1490/1550
4 T1550/1610 R1310/1490
5 T1550/1625 R1310/1490
6 T1625 R1310/1490/1550
7 T1650 R1310/1490/1550
Insertion Loss dB Transmission: ≤ 0.6
Reflection: ≤ 0.4
Transmission Channel Isolation dB ≥ 30
Reflection Channel Isolation dB ≥ 17
PDL dB ≤ 0.1
Wavelength thermal stability nm/℃ ≤ 0.003
Insertion loss thermal stability dB/℃ ≤ 0.005
Return loss dB ≥ 45
Optical Power mW ≤ 500
Operating Temperature -10 ~ +70
Storage Temperature -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm Φ5.5×34 Φ4.2×25 90×20×10
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.











































Dimension of 1310/1550/1490nm Fwdm Filter WDM

  • 90×20×10

1310/1490/1550nm Filter Wavelength Division Multiplexer FWDM for WDM system / CATV



  • 5534: Φ5.5×34 mm

1310/1490/1550nm Filter Wavelength Division Multiplexer FWDM for WDM system / CATV



Ordering Information of 1310/1550/1490nm Fwdm Filter WDM:

A B C D E
Wavelength Tube Type Fiber Length
(Include connector)
Connector Dimension

T15R13/14=T1550 R1310/1490

T14R13/15=T1490 R1310/1550

T13R14/15=T1310 R1490/1550

T15/16R13/14=T1550/1610R1310/1490

X=Others

25=250um

90=900um 20:2000um

30=3000um

X=Others

05=0.5m±0.05m

10=1.0m±0.05m

15=1.5m±0.05m

X= Others

00=None

FP=FC/PC

FA=FC/APC

SP= SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LC/APC

X=Others

5534=Φ5.5×34mm

4225=Φ4.2×25mm

9021=90×20×10mm

X=Others
