Product Details:
Payment & Shipping Terms:
|
| ITEM Name: | 12CH CWDM | Wavelength: | 1271-1371 & 1471-1571nm |
|---|---|---|---|
| Adaptor: | LC/UPC | Package: | Plastic Card |
| Feature: | Low IL | Application: | 5G Front-haul Networking |
| High Light: | sfp fiber optic transceiver,sfp transceiver modules |
||

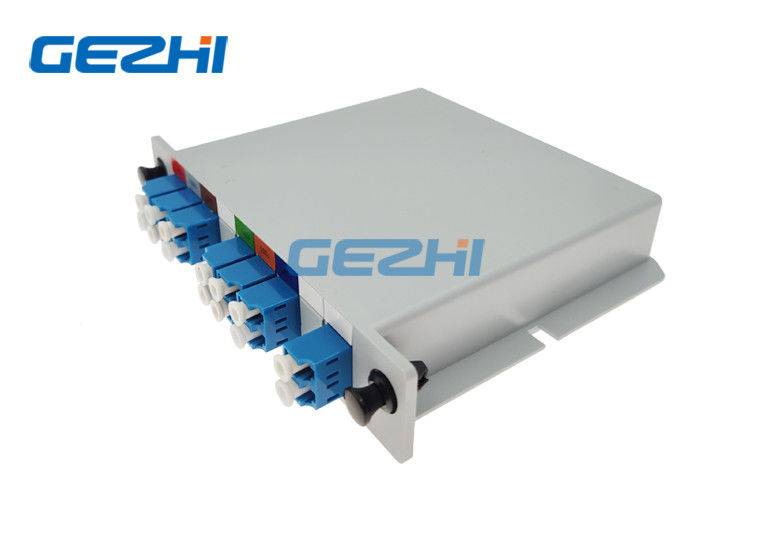

12CH CWDM for 5G Base Station
12CH CWDM for 5G Base Station for 5G wireless access network applications, which meet the demand for upgrade of the bearer network.
|
Features |
Applications |
|
|
12CH CWDM for 5G Base Station Ordering Information
| CWDM | XXX | XX | XX | XX | XX | XX |
| Number of Channels | Module type | Cable type | Fiber length | Input connector |
Output connector |
|
| CWDM | 01=1Channel 02=2 Channel 03=3 Channel 04=4 Channel ...... 16=16Channel 17=17Channel 18=18Channel |
0=100x80x10 mm 1=142x102x14.5 mm 2=LGX Box 3=19″1U Rack X=Others |
00=none 09=900um Loose tube 20=2.0mm 30=3.0mm |
05=0.5m 10=1.0m 15=1.5m 30=3.0m 40=4.0m 50=5.0m ...... |
0=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC X=Customized |
0=none |
12CH CWDM for 5G Base Station Specification
| Parameter |
Unit |
12CH CWDM Passive Multiplexer | ||
| Mux | Demux | |||
| Channel Wavelength | nm | 1271-1371 & 1471-1571nm | ||
| Center wavelength Accuracy |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
| Channel Passband (@-0.5dB bandwidth |
nm | >14 | ||
| Max Insertion Loss | dB | <3.0 | <3.0 | |
| Channel Ripple | dB | 0.3 | ||
| Isolation | Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
| Inertion Loss Temperature Sensitivity |
dB/℃ | <0.005 | ||
| Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
| Polarization Dependent Loss |
dB | <0.1 | ||
| Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -5~+75 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | L130x100x125 | ||
