| Name: | BIDI SFP+ Transceiver | Data Rate: | 10G |
|---|---|---|---|
| Distance: | 60KM | Connector: | SC/LC |
| Wavelenght: | 1270/1330 | DDM: | Yes |
| Certification: | CE,RoHs,FCC | ||
| High Light: | sfp optical module,transceiver fiber optic |
||
10g sfp 60km

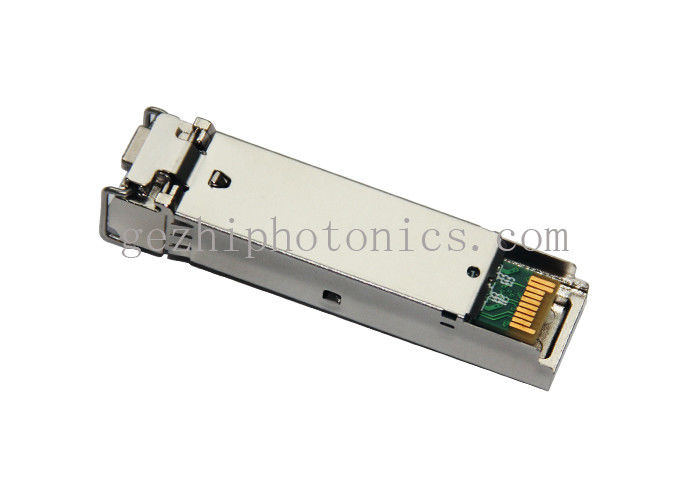

10GE SFP+ Module 60KM of 1270/1330nm BIDI SFP Transceiver
Product Description
The GPB-H123-L6C & GPB-H132-L6C series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
The GPB-H123-L6C module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; GPB-H132-L6C module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
Features
♦ Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
♦ Single 3.3V Supply
♦ Up to 60km on 9/125um SMF
♦Two types:
A:1270nm DFB Laser transmitter,1330nm receiver
B:1330nm DFB Laser transmitter,1270nm receiver
♦ SFP+ MSA SFF-8431 Compliant
♦ Digital Diagnostic SFF-8472 Compliant
♦ RoHS compliant and Lead Free
♦Operating case temperature: Standard 0 ~ 70 °C
Application:
♦ 10GBASE-LR at 10.3125Gbps
♦10GBASE-LW at 9.953Gbps
♦ Other Optical Links
Outline Dimensions
Ordering Information:
| Part Number | Product Description |
| GPB-H123-L6C | Tx1270nm/Rx1330nm, 10Gbps, 60km, 0ºC ~ +70ºC |
| GPB-H132-L6C |
Tx1330nm/Rx1270nm, 10Gbps, 60km, 0ºC ~ +70ºC |
