Product Details:
Payment & Shipping Terms:
|
Product Name: | SFP Optical Transceiver | Datarate: | 10Gb/s |
---|---|---|---|
Wavelength: | CWDM 1270~1610nm | Distance: | 70km |
Connector: | Duplex LC | DDM/DOM: | Yes |
High Light: | sfp fiber optic transceiver,sfp transceiver modules |

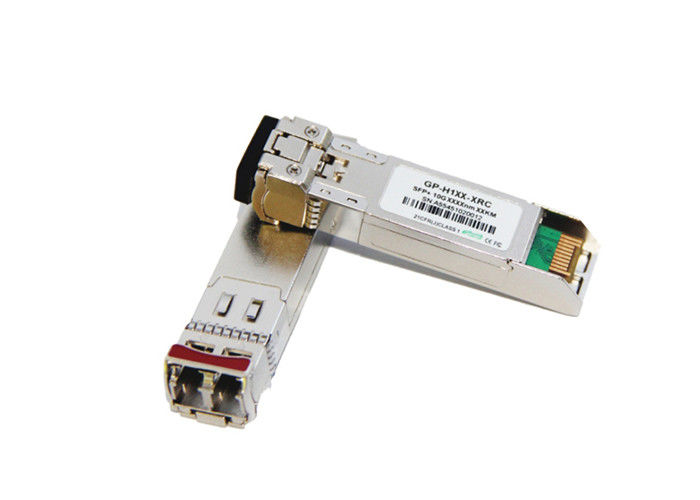

10Gb / s SFP Transceiver SMF Media SFP Optical Transceiver Module
Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1,551 nm, 90 km, LC)
The Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1,551 nm, 70 km, LC) is Functional in its intended equipments.
The GEZHI CWDM SFP small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communications applications on the CWDM SFP 1270, CWDM SFP 1290, CWDM SFP 1310, CWDM SFP 1330, CWDM SFP 1350, CWDM SFP 1370, CWDM SFP 1390, CWDM SFP 1410, CWDM SFP 1430, CWDM SFP 1450, CWDM SFP 1470, CWDM SFP 1490, CWDM SFP 1510, CWDM SFP 1530, CWDM SFP 1550, CWDM SFP 1570, CWDM SFP 1590, CWDM SFP 1610. wavelength.SFP transceivers are designed to support SONET/SDH, Gigabit Ethernet, Fibre Channel, and other communications standards SFP transceivers are available with a variety of different transmitter and receiver types, allowing users to select the appropriate transceiver for each link to provide the required optical reach over the available optical fiber. SFP transceivers are commercially available with capability for datarates up to 10 Gbit/s SFP+.
Features:
♦ Compliant with SFF-8431 and IEE802.3ae
♦ Data rate selectable ≤4.25Gbps or 9.95Gbps to 11.3Gbps bit rates
♦ Cooled EML transmitter and APD receiver
♦ link length up to 80km
♦ Low Power Dissipation 1.4W Typical (Maximum:2W)
♦ -5ºC to 70ºC Operating Case Temperature
♦ Single 3.3V power supply
♦ Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
♦ RoHS compliant and lead free
Specification:
P/N | / |
Datarate | 10Gb/s |
Wavelenght | 1551nm |
Distance | 70km |
Transmitter | EML |
Receiver | APD |
DDM/DOM | Yes |
Media | SMF |
Operating Temperature | 0°C to +75°C |
Competitive Advantages:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
