Product Details:
Payment & Shipping Terms:
|
Form Factor: | XFP | Interface Details: | 10GBase Ethernet/Fiber Channel SR |
---|---|---|---|
Data Rate: | 9.953 Gbps To 11.318 Gbps | Wavelength: | 850 Nm |
Distance: | 300 Meters (984 Feet) | Temperature Range: | Industrial -40°C To 85°C |
Digital Diagnostics (DDM): | Yes | ||
High Light: | fiber optic transceiver,transceiver fiber optic |

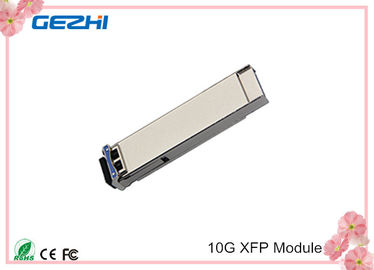

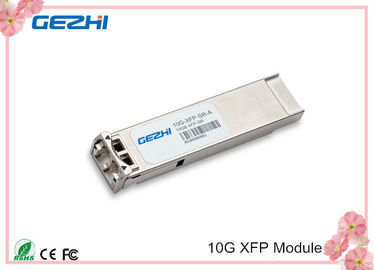

XFP 10GBase-SR
300m 850nm MM with DDM DWDM OC-192/STM-64/10G SONET ER
Features:
♦ Supports 9.95Gbps to 10.5Gbps bit rates
♦ Maximum link length of 300m (50um,MMF,2000MHz.Km)
♦ 850nm VCSEL laser and PIN receiver
♦ +3.3V +1.8Vpower supply

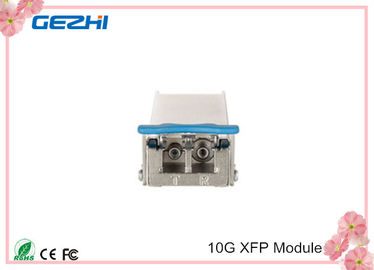

♦ XFP MSA package with duplex LC connector
♦ XFI electrical interface
♦ No reference clock required
♦ Compatible with RoHS
♦ Excelllent EMI performance
♦ Built-in digital diagnostic functions
♦ Temperature range: 0℃ to +70℃
♦ High reliability
Application:
♦ 10GBASE-SR/SW 10G Ethernet
♦ 1200-Mx-SN-I 10G Fibre Channel
♦ Other optical links
Description:
Gezhi's GX-H185-SRC is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).
The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Mechanical Dimensions:
Ordering Information:
Part Number | Product Description |
GX-H185-SRC | 850nm, XFP, 10Gbps, 300m, 0ºC ~ +70ºC |
GEZHI Photoncis is founded in 2011, which is a leading provider for optical active and passive products in China. We design,develop,manufacture and distribute the optical products to satisfy customer's need for optical communication in Ethernet,SDH/SONET,Video monitor,FTTH,WDM Netowrk, Access Network, CATV Network, EPON System etc.
Professional, delicated and passional, With reliable quality and competitive pricing,,GEZHI Photonics supply over-expected products and service to customers,In the past years, GEZHI have won the confidence and great reputation from domestic and oversea customers.
