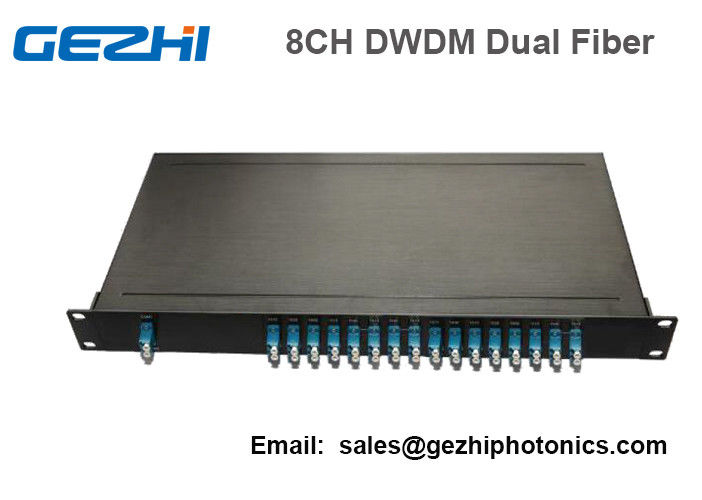

100Ghz Fiber Optical DWDM Mux Demux Module with 1U Plug-in Rackmount

100Ghz Fiber Optical DWDM Mux Demux Module with 1U Plug-in Rackmount
100Ghz Fiber Optical DWDM Mux Demux Module with 1U Plug-in Rackmount

Large Image :  100Ghz Fiber Optical DWDM Mux Demux Module with 1U Plug-in Rackmount

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-Optical DWDM Module
Payment & Shipping Terms:
Minimum Order Quantity: 1 for Optical DWDM Module
Price: Get Latest Price for Optical DWDM Module
Packaging Details: 1pcs in a foam with paper box for Optical DWDM Module
Delivery Time: 2~7working days
Supply Ability: 80000Channel per month for Optical DWDM Module
Detailed Product Description
Product Name: Optical DWDM Module Channel Number: 8 Channels
Wavelength: ITU Grid Connector: LC/UPC Or Customized
Fiber Type: Dual Fiber MANApplication: Expanding The Capacity Of An Existing Optical Network
High Light:

dense wave division multiplexer

,

fiber optic multiplexer


100Ghz Fiber Optical DWDM mux and demux Module with 1U Plug-in Rackmount

The GEZHI Photonics 8-channel DWDM multiplexers and demultiplexers facilitate DWDM architectures. Each 8Channel DWDM multiplexes up to eight DWDM wavelengths. Of the nine input ports, eight accept the inputs of individual narrowcast signals (via a common, LC/SC/FC or MPO connector), and the remaining port accepts the multiplexed DWDM input from prior modules in a cascade. The DWDM output port carries the combined, multiplexed signal of all narrowcast channels, and a monitoring port is also available.

The GEZHI Photonics' 8channel DWDM demultiplexer operates in comparable fashion, but in this case serving to output the individual (up to eight) DWDM signals from a single DWDM input port, and any remaining narrowcast signals passed through a DWDM out cascade port.



Features

  • 8 channel DWDM with both a multiplexer and demultiplexer in unit
  • Easy to install, requires no configuration
  • Environmentally friendly product, completely passive, no power and no cooling required for operation!
  • Standalone, no other equipment required
  • To be used in 2 fiber strand spans (1 fiber strand span product also available)
  • Can be connected to any fiber type
  • Low insertion loss - high isolation
  • Disassembles easily for cleaning
  • Fully Universal, bidirectional operation on any port
  • Fully transparent at all data rates and protocols
  • High reliability, MTBF of 100 years
  • Telcordia/Bellcore GR-1209 and GR-1221 qualified
  • Accepts any data rate and any protocol on any port up to 10 Gbps, also 40 Gbps (DPSK, DQPSK) and 100 Gbps (DP-QPSK)
  • Optional 1310nm window can be seamlessly integrated



Application

  • Any equipment using 200 GHz or 100 GHz ITU-T transceivers.
  • With optional 1310 window, any equipment using 1310nm transceivers.
  • SONET OC-3 to OC-192, SDH STM-1 to STM-64, GBIC, SFP, XFP, Xenpak, Ethernet over fiber, ATM over fiber etc...



Passive DWDM Module MUX/DEMUX

Item
Parameters
Min
Typical
Max
Unit
Note
1.
Working Wavelength Range
1528~1640
nm

2.
Center Wavelength λC
ITU Grid
nm

3.
Channel Spacing
100
GHz

4.
Passband Bandwidth
λC±0.11
nm

5.
Insertion Loss
4-channel

1.8
2.0
dB
[1]
8-channel

3.2
3.6
dB
6.
Polarization Dependent Loss


0.20
dB

7.
Passband Ripple


0.50
dB

8.
Adjacent Channel Isolation
30


dB

9.
Non-adjacent Channel Isolation
40


dB

10.
Polarization Mode Dispersion


0.20
ps

11.
Return Loss
45


dB

12.
Directivity
50


dB




Ordering Information

DWDM X XX X XX X X XX
  Channel Spacing Number of Channels Configuration 1st Channel Fiber Type Fiber Length In/Out Connector
1=100GHz

04=4 Channel

08=8 Channel

16=16 Channel



M=Mux

D=Demux

21=Ch21

……

34=Ch34

……

50=Ch50

……

1=Bare fiber

2=900um loose

tube

3=2mm Cable

4=3mm Cable

1=1m

2=2m

S=Specify

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

S=Specify







GEZHI PHotonics also supply DWDM SFP from 155Mbps up to 10Gigabit. Distance up to 150km.

  • Fully compatible with all ITU-T 200 GHz or 100 GHz transceivers
  • Compatible with lightwave equipment including, , Nortel, Alcatel, Ciena, Fujitsu, etc.
  • specify required wavelengths wavelengths on order
  • ISO 9001 manufacturing facility
  • Lifetime Product Warranty
