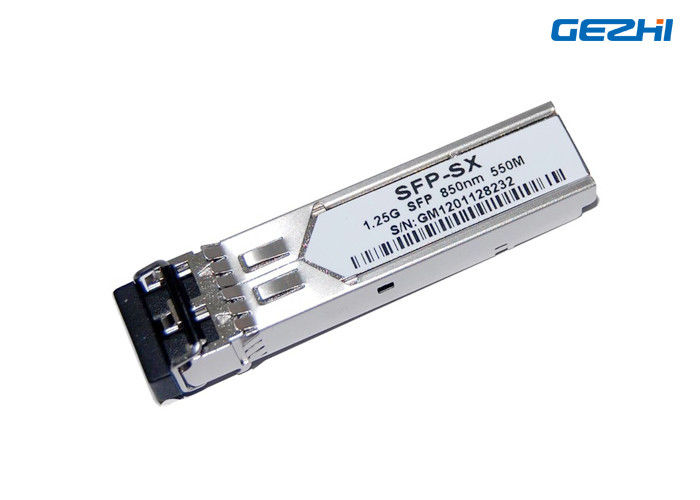

1000BASE-SX 850nm SFP Fiber Module Optical Transceiver For Gigabit Ethernet

Name: 1000BASE-SX 850nm SFP Fiber Module Optical Transceiver For Gigabit Ethernet
Brand: GEZHI or OEM
SKU: GS-1285-05CD
Rating: 4.8 (120 reviews)

Large Image : 1000BASE-SX 850nm SFP Fiber Module Optical Transceiver For Gigabit Ethernet

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GS-1285-05CD

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Get Latest Price
Packaging Details:	10 or 20pcs in Plastic tray
Delivery Time:	1~3working days after payment
Payment Terms:	T/T, Paypal,Western Union
Supply Ability:	60,000pcs per month

Contact Now

Detailed Product Description

Product Name:	MM SX SFP Transceiver	Datarate:	1000base
Wavelength:	850nm	Distance:	0.5km
Transmitter:	VESCEL Laser	Application:	Fiber Channel /Gigabit Ethernet
Highlight:	sfp optical transceivers , sfp transceiver modules

1000BASE-SX 850nm SFP Fiber Module Optical Transceiver For Gigabit Ethernet

GEZHI SFP optical transceivers are used for Gigabit Ethernet and come in a wide variety of transmitters/receivers for different distances and fiber types as well as conversion to RJ-45 (copper). GEZHI SFP optics are compliant with MSA SFP specification. SFP fiber module if the next generation of GBIC and about half the size of the GBIC.

Features:

♦ Dual data-rate of 1.25Gbps/1.063Gbps operation

♦ 850nmVCSEL laser and PIN photodetector for 550m transmission

♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

♦ Digital Diagnostic Monitoring:

♦ Internal Calibration or External Calibration

♦ +3.3V single power supply

♦ Compatible with SONET OC-24-LR-1

♦ Compatible with RoHS

♦ Operating case temperature range of 0°C to +70°C(Commercial)

Application

♦ Gigabit Ethernet

♦ Router/Server interface

♦ Fiber Channel

♦ Switched backplane applications

♦ Switch to Switch interface

♦ Other optical transmission systems

Specification:

P/N	GS-1285-05CD
Datarate	1.25Gbps
Wavelenght	850nm
Distance	0.5km
Transmitter	VCSEL
Receiver	PIN
DDM/DOM	Yes
Media	MMF
Operating Temperature	0°C to +70°C

Competitive Advantages:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery

1000BASE-SX 850nm SFP Fiber Module Optical Transceiver For Gigabit Ethernet 0
