Product Name: | Pluggable SFP Transceiver | Datarate: | 1.25gb/s |
---|---|---|---|
Wavelength: | 1310nm | Distance: | 10km |
Connector: | LC Type | Application: | Switched Backplane |
High Light: | sfp optical transceivers,sfp transceiver modules |

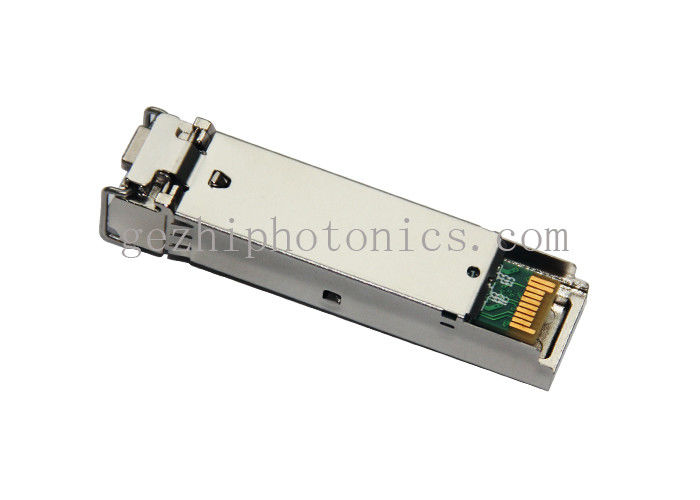

1000BASE-LX SFP Transceiver Modules 10km
GEZHI SFP optics are compliant with MSA SFP specification. SFP if the next generation of GBIC and about half the size of the GBIC. Most network vendors are using this form factor for their 1G transmission. In addition, other protocols can be used such as Fiber Channel and STM-x/OC-x.
Features:
♦ Dual data-rate of 1.25Gbps/1.063Gbps operation
♦ 1310nmFP laser and PIN photodetector for 10km transmission
♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
♦ +3.3V single power supply
♦ Internal Calibration or External Calibration
♦ Compatible with SONET OC-24-LR-1
♦ Operating case temperature range of 0°C to +70°C(Commercial) or -40°C to +85°C (Industrial)
Application
♦ Gigabit Ethernet
♦ Fiber Channel
♦ Router/Server interface
♦ Switched backplane applications
♦ Other optical transmission systems
Specification:
P/N | GS-1231-L1CD |
Datarate | 1000Base |
Wavelenght | 1310nm |
Distance | 10km |
Transmitter | FP |
Receiver | PIN |
DDM | Yes |
Media | SMF |
Operating Temperature | 0°C to +70°C |
Competitive Advantages:
