Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Patch Cables | Mode: | Single Mode |
|---|---|---|---|
| Cores: | Simplex | Polishing: | SC-FC |
| Length: | Customised | Application: | FTTB |
| High Light: | network accessories,fiber optic cable accessories |
||

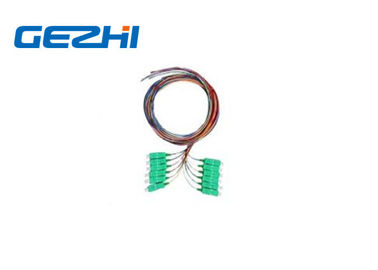

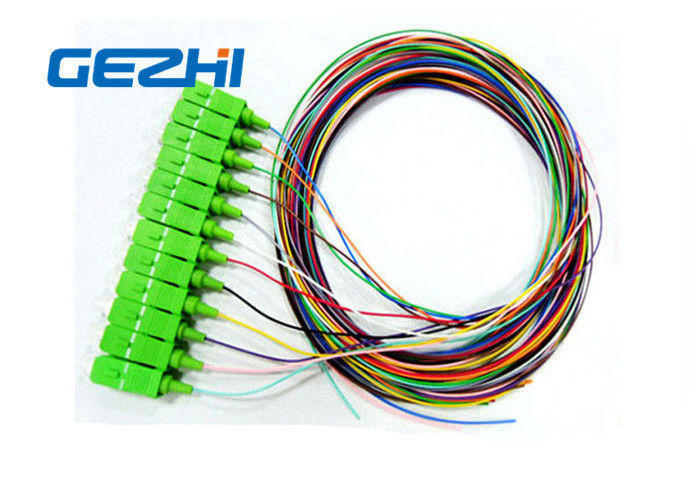

SC/APC 12 Colored multi fiber Pigtail allows quick high performance field fusion splice
during installation to provide the lowest installed cost, 900μm tight-buffered fibers break
out to terminated colored buffers for quick and easy identification of separate
Application
Specification
| Parameter | Unit | FC, SC, LC | ST | |||||
| SM | MM | SM | MM | |||||
| PC | UPC | APC | PC | PC | UPC | PC | ||
|
Insertion loss (typical) |
dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
|
Operating wavelength |
nm | 1310, 1510 | 1310, 1510 | |||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | |||||
| Vibration | dB | ≤0.2 | ≤0.2 | |||||
|
Operating temperature |
℃ | -40~75 | -40~75 | |||||
|
Storage temperature |
℃ | -45~85 | -45~85 | |||||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | |||||
Ordering Information:
FC/ PC SM 9/125 SIMPLEX 0.9mm–2M PVC
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH,
