FTTH FC UPC SM Patch Cord Accessories Single Mode Simplex 900um LSZH 5M 1310nm

Description

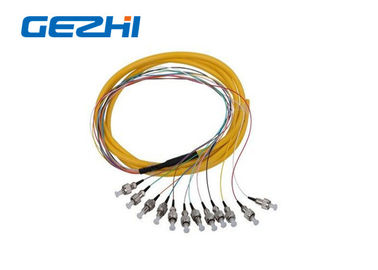

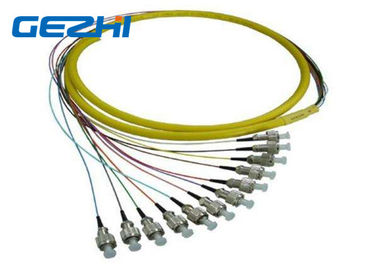

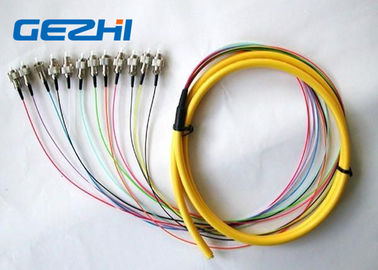

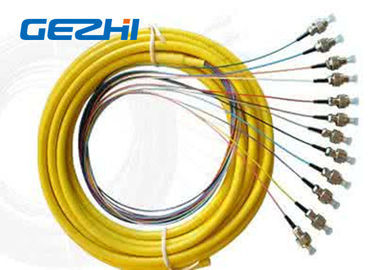

FC Bunchy pigtail, also called FC fiber optic bundle pigtail, only one end has connector FC, the other end

is a fiber cable which is cut off, it is connected with the other fiber core by fusion, often appear

in the optical fiber terminal box to connect the cable and terminal equipment.

It mainly have two types: single mode bunchy pigtails or multi-mode pigtails.SMF (single mode fiber )

is yellow, the wavelength: 1310nm and 1550nm, the transmission distance are respectively 10km and

40km. It consists of 12pcs pigtails composition, color is as follows:

blue, orange, green, brown,gray, white, red, black, yellow, purple, pink, light blue.

Features

1. Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
2. Fiber transmission active connection
3. Low insertion loss, high return loss
4. Good changeability and repeatability
5. Mostly used inside frame connection, simple, convenient and economical
6. Easy to install, small size, large capacity.
7. Jumper diameters: 2.0mm, 0.9mm.
8. Optical Indicators:
9. PC insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
10. APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
11. Fiber count: 4 core 6 core 8 core, 10 core, 12 core.
12. Fan out fibers have a special tube protection from twisting off or injury,
13. and good bending properties.
14. Can use connectors like: FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc

Optical Characteristics

Order information

FC / UPC fiber optic connector

1. Polish method: PC UPC APC
2. Fiber count: 2core, 4core, 6core, 8core, 12 core, etc
3. Fiber type: G652D, G657A, G657A2, G655
4. Cable type: OS1 SM, MM OM1, OM2, OM3 10G, OM4,etc
5. Cable length: 1meter, 2meter, 3meter,.... Etc
6. Package: Blister box, plastic bag, paper bubble bag
