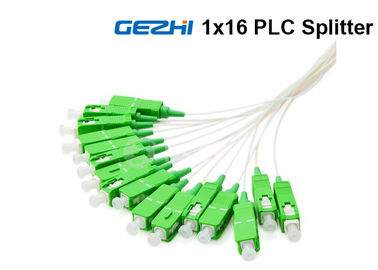

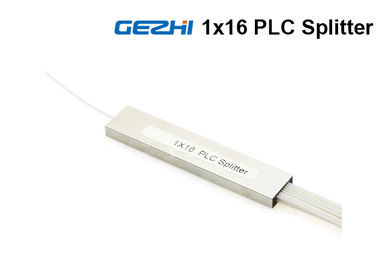

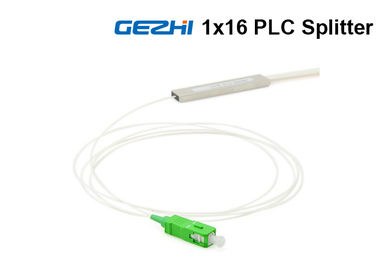

FTTH 1x16 Fiber Optic PLC Splitter

FTTH 1x16 Fiber Optic PLC Splitter
FTTH 1x16 Fiber Optic PLC Splitter FTTH 1x16 Fiber Optic PLC Splitter FTTH 1x16 Fiber Optic PLC Splitter FTTH 1x16 Fiber Optic PLC Splitter

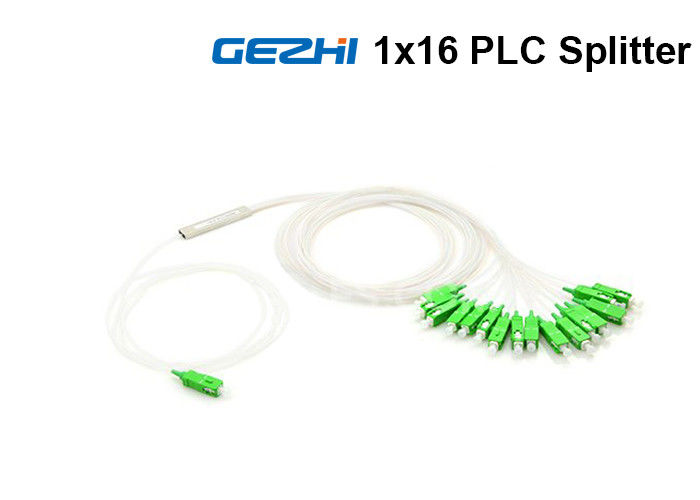

Large Image :  FTTH 1x16 Fiber Optic PLC Splitter

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-1x16 PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 2pcs in a foam with paper Box
Delivery Time: 2~7working days
Supply Ability: 80000pcs per month
Detailed Product Description
Product Name: Fiber Optical Splitter Wavelength: 1260~1620nm
Type: 1x16 Package: Stainless Steel Tube
Connector: LC/SC/FC/ST (PC Or APC) Application: Data Communications
High Light:

fiber optic beam splitter


fiber optic plc splitter

FTTH 1x16 Fiber Optic PLC Splitter

1 input and 16 output fibers with an even split ratio, SC/APC, 900μm fiber

GEZHi 1x16 Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
GEZHI Photonics PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. GEZHI provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 bare type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1x16 PLC splitters with SC/APC Connector Device are used for small space that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.

The 1×16 Blockless Fiber PLC Splitter supports G.657A1 Fiber, 900μm input and output fiber, and SC, LC, FC & ST connectors for choice.



  • Compact Design
  • Low Insertion loss & PDL
  • Good channel-to-channel uniformity
  • High Reliability and Stability


  • Optical Signal Distribution
  • Data Communications
  • LAN and CATV System
  • FTTX Deployment
  • FTTH Network
  • Passive Optical Networks (PON)
  • Measuring System and Laser System
  • Outside Plant Equipments
  • DWDM and CWDM systems

1x16 PLC Splitter with SC/APC ​Specification

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.2/7.4 10.3/10.7 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.0 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.1 0.1 0.1 0.20 0.25 0.30 0.4
Return Loss (dB)(P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.3 0.5 0.5 0.5

Temperature Stability

(-40~85 ℃)(dB)

0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (℃) -40~80
Storage Temperature (℃) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×7×4 50×7×4 60×12×4 N/A
Module Dimension (mm) 100×80×10 120×80×18 141×115×18
Mini-Module Dimension (mm) 60×4×4 60×7×4 60×7×4 60×12×4 80×20×6 100×40×6 N/A

1x16 PLC Splitter with SC/APC connector Dimensions
FTTH 1x16 Fiber Optic PLC Splitter 0
