| Product Name: | Dual Bypass Optical Switch | Wavelength: | 1260~1650nm |
|---|---|---|---|
| Channel: | 4x4 (dual 2x2) | Control Type: | Latching Or Non-latching |
| Connector: | LC/SC/FC/ST (PC Or APC) | Application: | Metropolitan Area Network |
| High Light: | fiber optic switch,optical fiber switch |
||

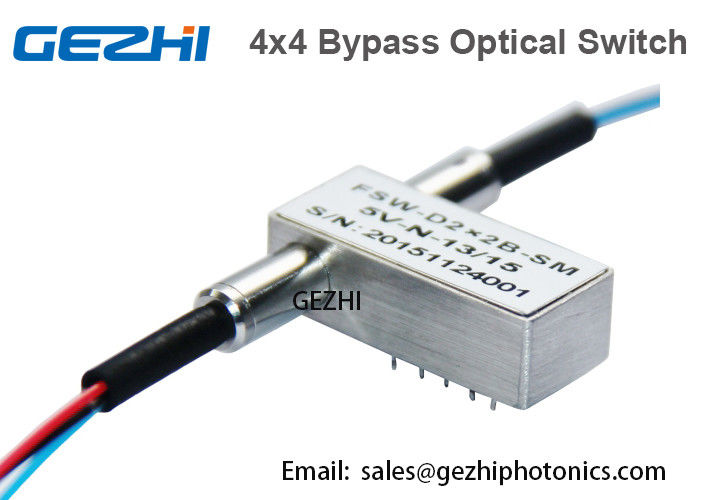

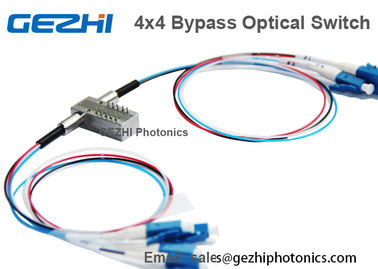

GEZHI Photonics Dual 2x2B Mechanichal Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.
GEZHI’s Dual 2x2B (D2x2B) Mechanichal Optical Switch support all wavelength at 1260nm~1650nm or Multimode 850nm wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
Features
Specification
| Parameters | GZ-FSW-D2×2B | ||
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:1.0 Max:1.5 | Typ:1.0 Max:1.5 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 customization is available. | |
Pins
| Type | State | Pin definition | Power | Condition monitoring | ||||||
| D2x2B | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | ||
| Non-latching | A | P1-P3 P1’-P3’ | -- | -- | -- | -- | Close | Open | Open | Close |
| B | P1-P4,P2-P3 P1’-P4’,P2’-P3’ | V+ | -- | -- | GND | Open | Close | Close | Open | |
| Latching | A | P1-P3 P1’-P3’ | -- | -- | GND | V+ | Close | Open | Open | Close |
| B | P1-P4,P2-P3 | V+ | -- | GND | -- | Open | Close | Close | Open | |
Optical Route
| Status One | Status Two |
 | |
Dimension
Order Information
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM | 85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others | 3=3V 5=5V | L=Latching N=Non- Latching | 5=50/125 6=62.5/125 9=9/125 X=Others | 25=250um 90=900um 20=2.0mm 30=3.0mm X=Others | 1=1m 2=1.5m X=Others | 0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC |
