96 Channels DWDM Mux Demux

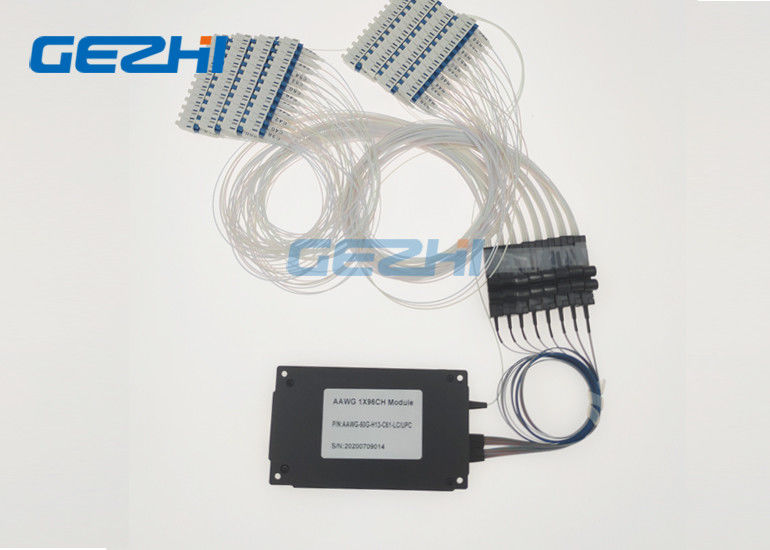

Large Image : 96 Channels DWDM Mux Demux

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/RoHS/ISO9001
Model Number:	AAWG96CH

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Get Latest Price
Packaging Details:	paper box with foam
Delivery Time:	5-10 work days
Payment Terms:	T/T, Paypal,Western Union
Supply Ability:	5,000pcs per month

Contact Now

Detailed Product Description

Product Name:	AAWG	Channel Number:	96Channels
Wavelength:	C15~C62	Length:	1meter
Connector:	LC/UPC	Application:	DWDM Transmission
High Light:	sfp optical transceivers , sfp transceiver modules

96 Channels DWDM Mux Demux

50GHZ 96 Channels AAWG DWDM Mux Demux is a high-density, low-loss DWDM Modules for high-capacity terminal DWDM solutions that allows multiplexing of up to 96 wavelengths to a fibre pair. All 96 channels are spread over the C-band per ITU-T 50GHz (0.4nm) spacing between channels using high quality AAWG technology. It's perfectly suited for transport PDH, SDH/SONET, ETHERNET services in optical metro edge and access networks.

Features	Applications
Athermal Design, Electrical Power is Not Required Low Insertion Loss,Low PDL,High Channel Isolation Compact Package Multi-channel Number Telcordia GR-1209/1221 compliant	DWDM Transmission Building Blocks for ROADM Metro Area Networks Long-haul Networks

Specification

Parameters		50GHz Athermal AWG Module
Chip Type		Flat-top
Number of Channels		80/96 Channels
Channel Wavelength (nm)		C-Band
Channel Spacing (GHz)		50
Channel Passband (GHz)		±6.25
Wavelength Accuracy (nm)		±0.04
Insertion Loss (dB)		< 6.0
1dB Channel Bandwidth (nm)		> 0.2
3dB Channel Bandwidth (nm)		> 0.4
Isolation (dB)	Adjacent Channel	> 25
	Non-Adjacent Channel	> 30
	Total Crosstalk	> 20
Ripple (dB)		< 0.5
Uniformity (dB)		< 1.0
Polarization Dependent Loss (dB)		< 0.5
Polarization Mode Dispersion (ps)		< 0.5
Directivity (dB)		> 45
Return Loss (dB)		> 45
Chromatic Dispersion (ps/nm)		±20
Operating Temperature (℃)		-5~+65
Storage Temperature (℃)		-40~+85
Operating Humidity (%RH)		5~95
Storage Humidity (%RH)		5~95
Package Dimension (mm)		L120xW70xH11
19’’ Rack mount Package		19" 1U, 2U

Ordering Information

AAWG	XX	X	XX	XXX	XX	XX	XX
	Spacing	Chip Type	Channel Number	1st Channel	Input Fiber Length	Output Fiber Length	In/Out Connector
Athermal AWG	05=50GHz 10=100GHz 20=200GHz	F=Flat-top G=Gaussian	32=32CH 40=40CH 48=48CH 80=80CH 96=96CH XX=Specify	C14=C14 ... ... H25=H25 ... ... H60=H60 ... ... XXX=Specify	05=0.5m 10=1.0m 15=1.5m 20=2.0m 25=2.5m XX=Specify	05=0.5m 10=1.0m 15=1.5m 20=2.0m 25=2.5m XX=Specify	0=None 1=LC/PC 2=LC/APC 3=SC/PC 4=SC/APC 5=FC/PC 6=FC/APC X=Specify
