Product Name: | SFP+ Transceiver Modules | Datarate: | 10Gb/s |
---|---|---|---|
Wavelength: | CWDM 1270~1610nm | Distance: | 70km |
Connector: | Duplex LC | Application: | WDM System |
High Light: | sfp fiber optic transceiver,sfp transceiver modules |

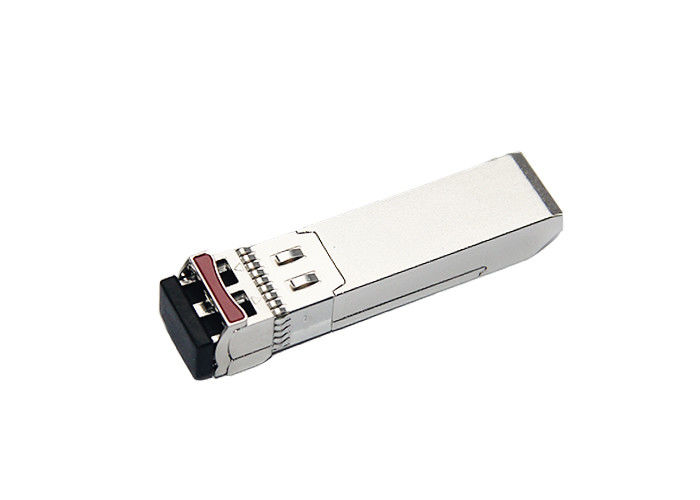

70km 10Gb Switch 10 Gigabit Ethernet SFP+ Transceiver For WDM System
Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1,571 nm, 90 km, LC)
The Optical Transceiver, SFP+, 10G, Single-mode Module (CWDM, 1,571 nm, 70 km, LC) is Functional in its intended equipments.
CWDM Optical Transceivers are designed to generate signals at wavelengths of the CWDM band. In order to create duplex data transmission channels in the CWDM system, transceivers are used in pairs.
CWDM transceivers are available in a variety of form factors: SFP, SFP +, GBIC, X2, and XFP. A product line of suggested transceivers allows to implement flexible technical solutions and ensure data transmission rate ranging from 155 Mbit/s to 10 Gbit/s in CWDM systems.
CWDM transceivers support all protocols used at different data transmission rates:
OC-3/STM-1/SDH/FE at up to 155 Mbit/s;
OC-12/STM -4/SDH at up to 622 Mbit/s;
GBE/FC at up to 1.25 Gbit/s;
OC-48/STM-16/SDH/GBE/FC at up to 2.5 Gbit/s;
GBE/FC at up to 4.25 Gbit/s;
10GBE/10FC/OC-192/STM-64 at 10 Gbit/s.
Depending on the rate of the transmitted signal in module transmitters, lasers of various types are installed:
In the receptacle of modules, high-sensitivity receivers — APD or PIN — are used.
To carry out the on-line monitoring, DDM (Digital Diagnostic Monitoring) function is used. The DDM function allows for real-time control of the following parameters: input signal (RX) power, output signal (TX) power, module temperature parameters.
Changes in these parameters provide an indication of the deteriorated optical system and state of the path as a whole.
Specification:
P/N | / |
Datarate | 10Gb/s |
Wavelenght | 1571nm |
Distance | 70km |
Transmitter | EML |
Receiver | APD |
DDM/DOM | Yes |
Media | SMF |
Operating Temperature | 0°C to +75°C |
Competitive Advantages:
1. Excellent quality and 3 years warranty time
2. Competitive pricing
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
