Product Name: | Rackmount PLC Splitter | Wavelength: | 1260~1620nm |
---|---|---|---|
Type: | 1x16 | Package: | 19" 1U Rackmount |
Connector: | LC/SC/FC/ST (PC Or APC) | Application: | DWDM And CWDM Systems |
High Light: | fiber optic beam splitter,fiber optic plc splitter |

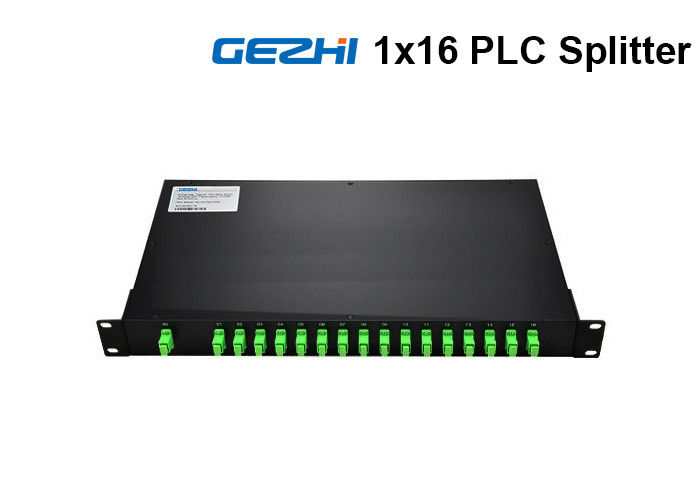

1 input and 16 output fibers with an even split ratio, SC/APC adaptor
GEZHI PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. GEZHI Photonics provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 ABS Box type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1x16 1U Rack Mount type adopts 1U frame, or customize according to actual requirement. It can be installed in ODF canonically and syncretize with appreance of box/ cabinet body via canonical fiber distribution.
GEZHI 1×16 1U Rack Mount Fiber PLC Splitter supports SC, LC, FC & ST connectors for choice.
Features:
Application
1x16 PLC Splitter Module Specification
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | |
Operating Wavelength (nm) | 1260~1650 | |||||||
Fiber Type | G657A1 or customer specified | |||||||
Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 | |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | |
Polarization Dependent Loss(dB) Typical | 0.1 | 0.1 | 0.1 | 0.20 | 0.25 | 0.30 | 0.4 | |
Polarization Dependent Loss(dB) Max. | 0.15 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | |
Return Loss (dB)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
Temperature Stability (-40~85 ℃)(dB) |
0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | |
Operating Temperature (℃) | -40~80 | |||||||
Storage Temperature (℃) | -40~85 | |||||||
Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A | |
Module Dimension (mm) | 100×80×10 | 120×80×18 | 141×115×18 | |||||
Mini-Module Dimension (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A |
Sample Picture
|
Mechanical Drawing
|
