Product Details:
Payment & Shipping Terms:
|
| Data Rate: | 9.95 Gbps To 10.52 Gbps | Wavelength: | TX: 1270 Nm, RX: 1330 Nm |
|---|---|---|---|
| Distance: | 20KM | Temperature Range: | Commercial 0°C To 70°C |
| Digital Diagnostics (DDM): | Yes | Connection: | Single-mode Fiber (SMF) |
| High Light: | sfp fiber optic transceiver,sfp transceiver modules |
||

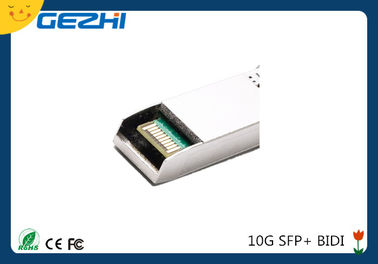

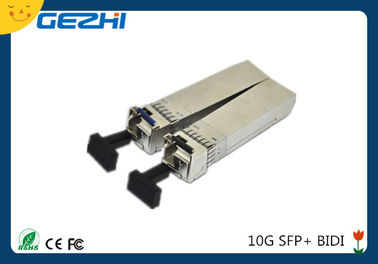

10G date rate SFP BIDI TX1270nm/RX1330nm 20km Simplex LC connector
GPB-H123-L2C & GPB-H132-L2C
Tx: 1270nm/Rx: 1330nm BIDI SFP Transceiver for 10GbE
Tx: 1330nm/Rx: 1270nm BIDI SFP Transceiver for 10GbE
Description:
The GPB-H123-L2C & GPB-H132-L2C series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices as depicted in Figure below: GPB-H132-L2C transmits a 1330-nm channel and receives a 1270-nm signal, whereas GPB-H123-L2C transmits at a 1270-nm
wavelength and receives a 1330-nm signal.
The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
Application:
♦ 10GBASE-LR at 10.3125Gbps
♦10GBASE-LW at 9.953Gbps
♦ Other Optical Links
Features:
♦ Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
♦ Single 3.3V Supply
♦ Up to 20km on 9/125um SMF
♦Two types:
A:1270nm DFB Laser transmitter,1330nm receiver
B:1330nm DFB Laser transmitter,1270nm receiver
♦ Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
♦Operating case temperature: Standard 0 ~ 70 °C
Mechanical Dimensions:
Ordering Information:
| Part Number | Product Description |
| GPB-H123-L2C | Tx1270nm/Rx1330nm, 10Gbps, 20km, 0ºC ~ +70ºC |
| GPB-H132-L2C | Tx1330nm/Rx1270nm, 10Gbps, 20km, 0ºC ~ +70ºC |
