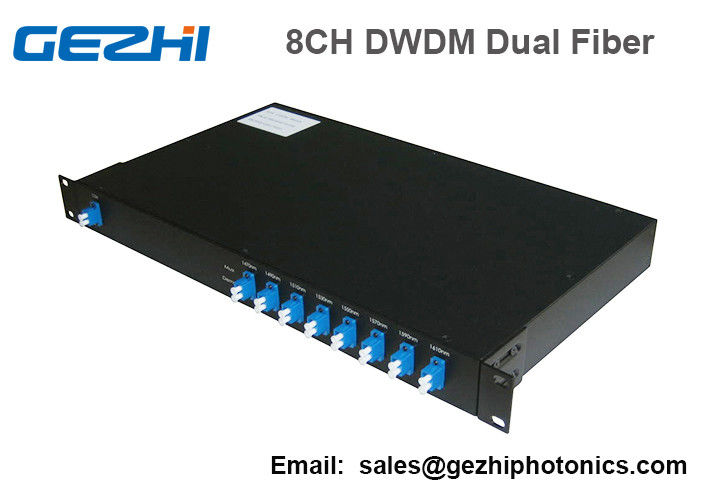

100Ghz DWDM 8 Channel Multiplexer and Demultiplexer in unit dual fiber

100Ghz DWDM 8 Channel Multiplexer and Demultiplexer in unit dual fiber
100Ghz DWDM 8 Channel Multiplexer and Demultiplexer in unit dual fiber

Large Image :  100Ghz DWDM 8 Channel Multiplexer and Demultiplexer in unit dual fiber

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-DWDM Multiplexer and Demultiplexer
Payment & Shipping Terms:
Minimum Order Quantity: 1 for DWDM Multiplexer and Demultiplexer
Price: Get Latest Price for DWDM Multiplexer and Demultiplexer
Packaging Details: 1pcs in a foam with paper box for DWDM Multiplexer and Demultiplexer
Delivery Time: 2~7working days
Supply Ability: 80000Channel per month for DWDM Multiplexer and Demultiplexer
Detailed Product Description
Product Name: DWDM Multiplexer And Demultiplexer Channel Number: 8 Channels
Wavelength: ITU Grid Connector: LC/SC/FC/ST (PC Or APC)
Fiber Type: Dual Fiber MANApplication: Long-haul Optical Networks Either In Point-to-point Or Ring Topology
High Light:

dense wave division multiplexer

,

fiber optic multiplexer


100Ghz DWDM 8-Channel Multiplexer and Demultiplexer in unit dual fiber


This multiplexer features ultra low insertion loss, super thermal stability, and unparallel reliability. The technology is a lead-free packaging platform and no epoxy in the optical path.



100GHz DWDM is Telcordia GR-1221 and GR-1209 tested, qualified for uncontrolled environment applications and complied with industry green initiatives such as RoHS and WEEE.



              100Ghz DWDM 8 Channel Multiplexer and Demultiplexer in unit dual fiber 0



Features

  • Low insertion loss.
  • High channel Isolation.
  • Wavelength C/L band or customer specified.
  • By TTF(Thin Film Filter) technology.
  • Comply with Telcordia reliability requirements.



8 CHANNEL 100 GHZ AND 200 GHZ DWDM MUX/DEMUX

Parameter 100 GHz 200 GHz
Central Wavelength (λc) ITU Grid
Channel Pass Band ≥ λc ± 0.11 nm ≥ λc ± 0.25 nm
Insertion Loss (Pass Band) ≤ 3.0 dB ≤ 2.8 dB
Uniformity ≤ 1.5 dB
Pass Band Ripple ≤ 0.5 dB
Adjacent Channel Isolation ≥ 25 dB ≥ 30 dB
Non-Adjacent Channel Isolation ≥ 40 dB
Directivity ≥ 50 dB
Return Loss ≥ 45 dB
PDL ≤ 0.20 dB ≤ 0.15 dB
PMD ≤ 0.1 ps
Maximum Power Handling 300 mW
Operating Temperature 0°C ~ +70°C
Storage Temperature -40°C ~ +85°C
Package Dimensions 100 mm x 80 mm x 10 mm



Ordering Information

DWDM X XX X XX X X XX
  Channel Spacing Number of Channels Configuration 1st Channel Fiber Type Fiber Length In/Out Connector
1=100GHz

04=4 Channel

08=8 Channel

16=16 Channel



M=Mux

D=Demux

21=Ch21

……

34=Ch34

……

50=Ch50

……

1=Bare fiber

2=900um loose

tube

3=2mm Cable

4=3mm Cable

1=1m

2=2m

S=Specify

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC

S=Specify







100Ghz DWDM 8 Channel Multiplexer and Demultiplexer in unit dual fiber 1
