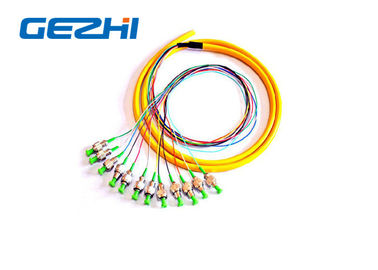

APC / FC Patch Cord Accessories Cord 8 Cores 12 Cores Green Tight Buffer

APC / FC Patch Cord Accessories Cord 8 Cores 12 Cores Green Tight Buffer
APC / FC Patch Cord Accessories Cord 8 Cores 12 Cores Green Tight Buffer

Large Image :  APC / FC Patch Cord Accessories Cord 8 Cores 12 Cores Green Tight Buffer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/RoHS/ISO9001
Model Number: GZ-Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 1pcs in a Plastic bag
Delivery Time: 1~3working days
Supply Ability: 100000pcs per week
Detailed Product Description
Product Name: Fiber Patch Cables Mode: Single Mode
Cores: Simplex Polishing: FC/APC
Length: Customised Application: FTTB
High Light:

network accessories

,

fiber optic cable accessories



Patch Panel APC / FC Fiber Optic Patch Cord 8 Cores 12 Cores Green Tight Buffer



Description

FC Bunchy pigtail, also called FC fiber optic bundle pigtail, only one end has connector FC, the other end

is a fiber cable which is cut off, it is connected with the other fiber core by fusion, often appear

in the optical fiber terminal box to connect the cable and terminal equipment.



It mainly have two types: single mode bunchy pigtails or multi-mode pigtails.



FC connector outer is metal strength,most use in ODF distribution frame of Telecom network,

it has a nut to fix on the adapter,can be stable and dust-proof, but installation time will be

a little longer. FC connector, SC connector, connect GBIC fiber optical transceivers modules,

its housing is rectangular, use bolt plug type to fix,no need rotate, most use in router or switch.



Features

  1. Fiber transmission active connection
  2. Low insertion loss, high return loss
  3. Good changeability and repeatability
  4. Mostly used inside frame connection, simple, convenient and economical
  5. Easy to install, small size, large capacity.
  6. Jumper diameters: 2.0mm, 0.9mm.
  7. Optical Indicators:
  8. PC insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
  9. APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
  10. Fiber count: 4 core 6 core 8 core, 10 core, 12 core.
  11. Fan out fibers have a special tube protection from twisting off or injury,
  12. and good bending properties.
  13. Can use connectors like: FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc



Optical Characteristics



Cable diameter φ0.9mm, φ2.0mm, φ3.0mm
Insertion loss ≤0.2dB
Return loss PC≥40dB,UPC≥50dB,APC≥60dB
Interchange ability test ≤0.2dB
Mating times >1000 times
Repeat ability ≤0.1dB
Vibration test ≤0.1dB(10-60Hz,1.5mm Full amplitude)
Tensile strength: 0~15Kg
temperature cycling test ≤0.2dB (-40℃~+85℃,after 5times recycle)
Low temperature test ≤0.2dB(-40℃,last 100 hours)
High temperature test ≤0.2dB (+85℃,last 100 hours)
Tensile test ≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception)
Temperature test ≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours)





Application

  • CATV network
  • LAN network
  • Fiber Access network
  • Telecommunications
  • Gigabit Data Network test
  • Medical instruments
  • Industry and Army use



Order information



FC/APC fiber optic connector

  1. Polish method: PC UPC APC
  2. Fiber count: 2core, 4core, 6core, 8core, 12 core, etc
  3. Fiber type: G652D, G657A, G657A2, G655
  4. Cable type: OS1 SM, MM OM1, OM2, OM3 10G, OM4,etc
  5. Cable length: 1meter, 2meter, 3meter,.... Etc
  6. Package: Blister box, plastic bag, paper bubble bag

APC / FC Patch Cord Accessories Cord 8 Cores 12 Cores Green Tight Buffer 0

APC / FC Patch Cord Accessories Cord 8 Cores 12 Cores Green Tight Buffer 1
