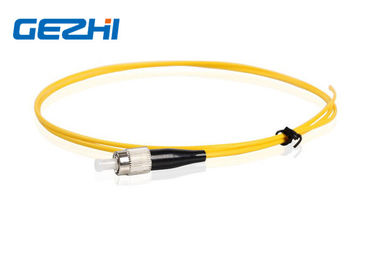

FC UPC SM SX atch Cord Accessories Pigtail 1.6mm LSZH FC PC Single Mode Simplex

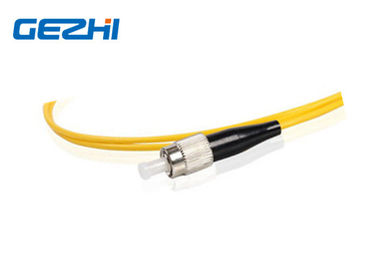

FC UPC SM SX atch Cord Accessories Pigtail 1.6mm LSZH FC PC Single Mode Simplex

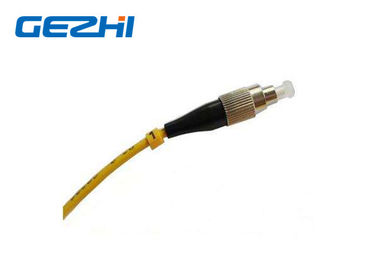

FC UPC SM SX atch Cord Accessories Pigtail 1.6mm LSZH FC PC Single Mode Simplex FC UPC SM SX atch Cord Accessories Pigtail 1.6mm LSZH FC PC Single Mode Simplex FC UPC SM SX atch Cord Accessories Pigtail 1.6mm LSZH FC PC Single Mode Simplex

Large Image :  FC UPC SM SX atch Cord Accessories Pigtail 1.6mm LSZH FC PC Single Mode Simplex

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 1pcs in a Plastic bag
Delivery Time: 1~3working days
Supply Ability: 100000pcs per week
Detailed Product Description
Product Name: Fiber Patch Cables Mode: Single Mode
Cores: Simplex Polishing: FC/UPC
Length: Customised Application: FTTB
High Light:

fiber cable accessories

,

fiber optic cable accessories



FC UPC SM SX Fiber Optic Patch Cord Pigtail 1.6mm LSZH FC PC Single Mode Simplex



FC Fiber Optic Pigtail was one of the most popular Pigtails. It use a 2.5mm ferrule, but some of

the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you must make

sure you have the key aligned in the slot properly before tightening. It's been mostly replaced by

SC and LC. However,due to easy assemblies and installation, GEZHI produced FC Fiber Optic

Pigtails are every competitive.



Application

  • CATV network
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX network



Features

  1. Low Insertion Loss
  2. High Return Loss
  3. Good Exchange ability
  4. Good Repeat ability
  5. High Temperature Stability
  6. 8 Degree Angled physical contact polishing (APC) can offer



Specification



Connector type

LC,SC,ST,FC, SC/APC,FC/APC,LC/APC.

Fiber Type

9/125um SMF-28 or equivalent (Single mode) OS1,

(Multi-mode) 50/125um OM1, 62.5/125um OM2

& 50/125um, 10G OM3, OM4

Cable Type

Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm,

Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm,

Φ0.6mm buffered fiber

PVC or LSZH

Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Single mode Master);

≤ 0.25dB (For Single mode Standard) ;

≤ 0.25dB (For Multi-mode) ;

Tested by JDS RM 3750

Return Loss

(For Single mode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeat ability ±0.1dB
Operating Temperature -40°C to 85°C

Geometry Requirement

(For Single mode)

Ferrule End face Radius:

7mm ≤ R ≤ 12mm (For APC);

10mm ≤ R ≤ 25mm (For Standard);

Apex Offset ≤ 30 μm (For Master);

Apex Offset ≤ 50 μm (For Standard);

Undercut -50nm ≤ U ≤ 50nm;

Tested by DORC ZX-1





Ordering Information


FC / UPC SM 9/125 SIMPLEX 1.6mm –1M LSZH

① ② ③ ④ ⑤ ⑥ ⑦



① Connector type: FC, SC, LC, ST,
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
