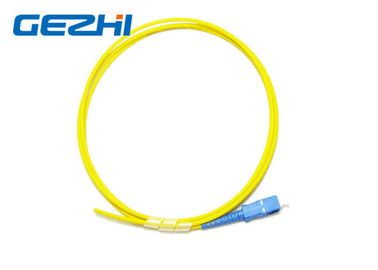

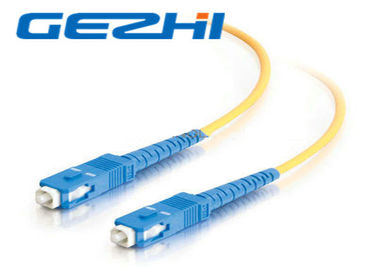

SC UPC SM Simplex 3mm Patch Cord Accessories 1 Meter Yellow Optical Cable LSZH G.652D

SC UPC SM Simplex 3mm Patch Cord Accessories 1 Meter Yellow Optical Cable LSZH G.652D
SC UPC SM Simplex 3mm Patch Cord Accessories 1 Meter Yellow Optical Cable LSZH G.652D SC UPC SM Simplex 3mm Patch Cord Accessories 1 Meter Yellow Optical Cable LSZH G.652D SC UPC SM Simplex 3mm Patch Cord Accessories 1 Meter Yellow Optical Cable LSZH G.652D SC UPC SM Simplex 3mm Patch Cord Accessories 1 Meter Yellow Optical Cable LSZH G.652D

Large Image :  SC UPC SM Simplex 3mm Patch Cord Accessories 1 Meter Yellow Optical Cable LSZH G.652D

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 1pcs in a Plastic bag
Delivery Time: 1~3working days
Supply Ability: 100000pcs per week
Detailed Product Description
Product Name: Fiber Patch Cables Mode: Single Mode
Cores: Simplex Polishing: SC/UPC
Length: Customised Application: FTTB
High Light:

fiber cable accessories

,

network accessories


SC UPC SM Simplex 3mm Fiber Optic Patch Cord 1Meter Yellow Optical Cable LSZH G.652D

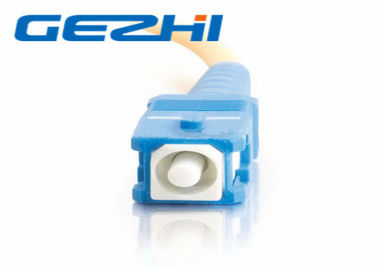

SC is short for square card, it can plug directly,easy to use, but also easy to drop out. SC Fiber Optic

Pigtail is a component installed in a fiber optic transmission system that reduce the power in the optical

signal. It is often used to limit the optical power received by the photo-detector to within the limits of the

optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.

It is used in the fiber transmission system .





Features

  • Low Insertion Loss
  • High Return Loss
  • Good Exchange ability
  • Good Repeat ability
  • High Temperature Stability
  • 8 Degree Angled physical contact polishing (APC)

Application

  1. CATV network
  2. Optical fiber communication systems
  3. Optical fiber data transmission
  4. Building network access
  5. Cabling system, ODF
  6. FTTX networks



Specification



Connector type

LC,SC,ST,FC. SC/APC,FC/APC,LC/APC.

Fiber Type

9/125um SMF-28 or equivalent (Single mode) OS1,

(Multi-mode) 50/125um OM1, 62.5/125um OM2 &

50/125um, 10G OM3, OM4

Cable Type

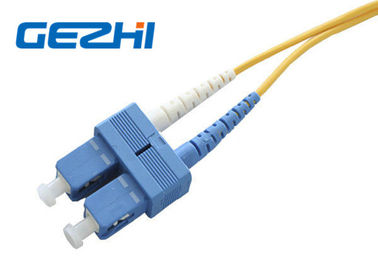

Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm,

Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm

buffered fiber

PVC or LSZH

Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Single mode Master)

≤ 0.25dB (For Single mode Standard)

≤ 0.25dB (For Multi-mode)

Tested by JDS RM 3750

Return Loss (For Single mode)

UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeat ability ±0.1dB
Operating Temperature -40°C to 85°C
Geometry Requirement (For Single mode)

Ferrule End face Radius

7mm ≤ R ≤ 12mm (For APC);

10mm ≤ R ≤ 25mm (For Standard);

Apex Offset ≤ 30 μm (For Master);

Apex Offset ≤ 50 μm (For Standard);

Undercut -50nm ≤ U ≤ 50nm;

Tested by DORC ZX-1





Ordering Information




SC / PC SM 9/125 SIMPLEX 3.0mm –1M LSZH

① ② ③ ④ ⑤ ⑥ ⑦



① Connector type: SC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH



SC UPC SM Simplex 3mm Patch Cord Accessories 1 Meter Yellow Optical Cable LSZH G.652D 0    SC UPC SM Simplex 3mm Patch Cord Accessories 1 Meter Yellow Optical Cable LSZH G.652D 1
