Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D

Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D
Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D

Large Image :  Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 1pcs in a Plastic bag
Delivery Time: 1~3working days
Supply Ability: 100000pcs per week
Detailed Product Description
Product Name: Fiber Patch Cables Mode: Single Mode
Cores: Simplex Polishing: FC
Length: Customised Application: FTTB
High Light:

fiber cable accessories

,

fiber optic cable accessories

Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D


We offers an FC Tunable Pigtail with four-position tuning for applications requiring precise fiber

alignment. A specially designed FC PM Pigtail is available for use with Polarization Maintaining Fiber.



Application

  • CATV network
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX network



Features

  1. Low Insertion Loss
  2. High Return Loss
  3. Good Exchange ability
  4. Good Repeat ability
  5. High Temperature Stability
  6. 8 Degree Angled physical contact polishing (APC) can offer



Specification



Item Single mode (nomomodo) Multimode (Multimodo)
Wavelength 1310&1550nm 850&1300nm
Fiber type 9/125um

62.5/125um,50/125um,50/125um

OM3,50/125um OM4

Connector type SC ST FC LC
Insertion loss on average ≤0.3dB ≤0.3dB
Max. insertion loss ≤0.5dB ≤0.5dB
Return loss UPC≥55dB;APC≥65dB ≥20dB
Operating temperature -40~+75℃
Storage temperature -40~+85℃



Ordering Information


FC / UPC SM 9/125 SIMPLEX 1.6mm –1M LSZH

① ② ③ ④ ⑤ ⑥ ⑦



① Connector type: FC, SC, LC, ST
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

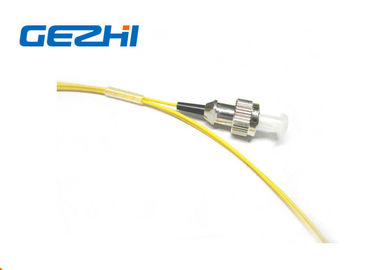

Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D 0

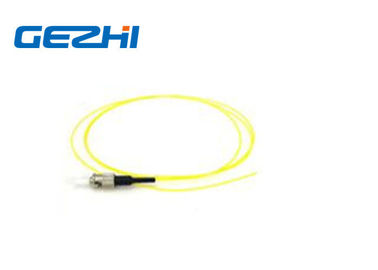

Fiber Optic Pigtail FC singlemode 0.9mm 1meter Yellow Color Cable PVC G652D 1
