FTTx SC Fiber Optic Pigtail Connector OM3 - 300 10G , SC Pigtail MM 5M Aqua

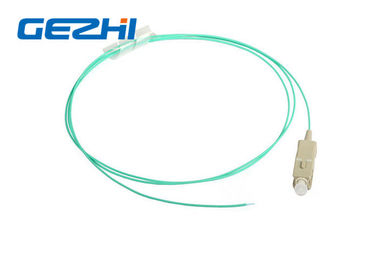

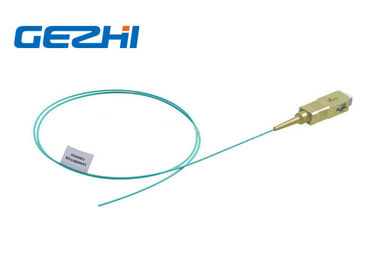

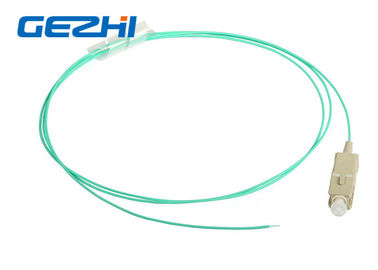

Large Image : FTTx SC Fiber Optic Pigtail Connector OM3 - 300 10G , SC Pigtail MM 5M Aqua

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE/FCC/RoHS/TUV/UL
Model Number:	GZ-Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Get Latest Price
Packaging Details:	1pcs in a Plastic bag
Delivery Time:	1~3working days
Supply Ability:	100000pcs per week

Contact Now

Detailed Product Description

Product Name:	Fiber Patch Cables	Mode:	Multi Mode
Cores:	Simplex	Polishing:	SC
Length:	Customised	Application:	FTTB
High Light:	network accessories , fiber optic cable accessories

FTTx SC Fiber Optic Pigtail Connector OM3 - 300 10G , SC Pigtail MM 5M Aqua

Fiber Optic pigtail= fiber optic cable + 1 connector

Fiber optic pigtail will splice with other cable core to connect. It is widely used in fiber optic
terminal box, ODF rack , cabinet to connect with fiber optic media converter/transceivers
(also use coupler, jumper/patch cord,etc.)

Features

Adopts high precision ceramic ferrule with good concentration
Advanced termination facilities & process
Fire rating cables are in option with OFNR, LSZH & OFNP;
Good performance endurance under circumstances changing.
Good geometry characteristics of apex offset & radius of curvature & fiber height;
100% inspected for optic characteristics and fiber end face;
Low insertion loss, high return loss,clean and scratch-free end faces;
Connectors SC/ST/FC/LC/MU/E2000/LX.5/DIN/D4/SMA/MTRJ(only in duplex) optional;
900um tight buffered cable as standard type, jacketed cable are also available;

Application

CATV network
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTx system

Specification

Parameter	Unit	FC, SC, LC				ST,
		SM			MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC
Insertion loss (typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30
Operating wavelength	nm	1310, 1510				1310, 1510
Exchangeability	dB	≤0.2				≤0.2
Vibration	dB	≤0.2				≤0.2
Operating temperature	°C	-40~75				-40~75
Storage temperature	°C	-45~85				-45~85
Cable diameter	mm	φ3.0, φ2.0, φ0.9				φ3.0, φ2.0, φ0.9

Ordering Information:
SC/ PC MM 50/125 SIMPLEX 0.9mm–2M PVC
① ② ③ ④ ⑤ ⑥ ⑦

① Connector type: FC, SC, LC, ST,
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
