LC / PC - FC / PC Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket

LC / PC - FC / PC Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket
LC / PC - FC / PC Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket LC / PC - FC / PC Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket

Large Image :  LC / PC - FC / PC Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket

Product Details:
Place of Origin: china
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 1pcs in a Plastic bag
Delivery Time: 1~3working days
Payment Terms: L/C, T/T
Supply Ability: 100000pcs per week
Detailed Product Description
Cable Jacket: LSZH Connector: SC/PC FC/PC
Fiber Mode: OM4 50/125um Cable Color: Pink
Length: 2meter Fiber Count: 2fibers
Cable Diameter: 2.0mm Net Weight: 0.03kg
Label: English
High Light:

network accessories

,

fiber optic cable accessories





LC / PC - FC / PC Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket



Optical fiber jumper is used as a link between fiber optic cable and equipment wiring. It has a thick

protective layer, generally used in the connection between the transmitter and the terminal box.



Optical fiber patch cord is similar to the coaxial cable, but no net shielding layer. In multimode fiber

center is the glass core for light propagation. The diameter of the core is 50-65um, roughly equal to the

size of a person's hair. And single-mode fiber core diameter is 8-10um,

outside the core surrounded by a layer glass coating whose refractive index is lower than that of the

core in order to keep the fiber in the core. Then a thin layer of plastic jacket to protect the coating.





   Features

  1. In accordance with Telcordia GR-326-CORE standard
  2. Low insertion loss, high return loss and high stability
  3. Good repeated mating characteristics, good interchangeability
  4. Using standard metal parts
  5. Ceramic ferrule, PC, UPC, APC grinding
  6. Can provide PVC, LSZH, OFNP, OFNR, TPU and other different colors, different outer sheath
  7. material
  8. Can provide G657A, G652D different fiber core material

Specifications



ptical

performance

item   Test condition Singlemode Multimode
Insertion loss UPC SM:1310/1550nm ≤0.2dB ≤0.3dB
Mm:850/1300nm
APC SM:1310/1550nm ≤0.3dB
Return loss UPC SM:1310/1550nm ≥55dB ≥35dB
Mm:850/1300nm
APC SM:1310/1550nm ≥65dB
Mechanical loss Compact test 1.8M height,8times <0.1dB <0.1dB
Vibration test

10-60Hz, 1mm

full amplitude

<0.1dB <0.1dB
Plug life >1000 times <0.1dB <0.1dB
Tensile strength >100N <0.1dB <0.1dB

Environmental

loss

High low temperature

cycle test

-25~+75°C,2cycles <0.2dB <0.2dB
High temperature test +80°C,2hours <0.2dB <0.2dB
Low temperature test -40°C,2hours <0.2dB <0.2dB
Damp heat test +40°C, 90-95%RH, 2hours <0.2dB <0.2dB

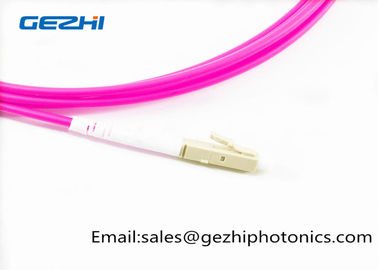

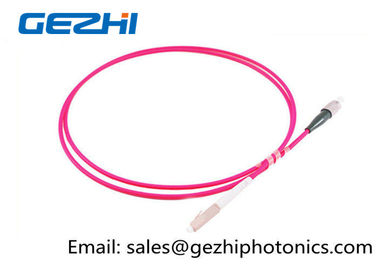

LC / PC - FC / PC Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket 0LC / PC - FC / PC Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket 1
