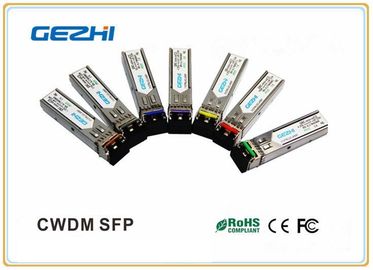

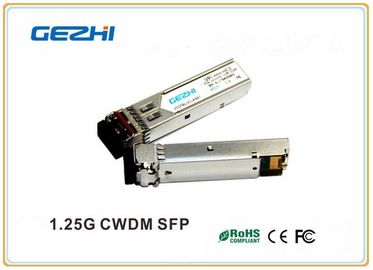

1.25Gbps 1550nm 120km CWDM SFP Fiber Module GSC-12xx-12C(D) for optical transmission systems

1.25Gbps 1550nm 120km CWDM SFP Fiber Module GSC-12xx-12C(D) for optical transmission systems
1.25Gbps 1550nm 120km CWDM SFP Fiber Module GSC-12xx-12C(D) for optical transmission systems 1.25Gbps 1550nm 120km CWDM SFP Fiber Module GSC-12xx-12C(D) for optical transmission systems 1.25Gbps 1550nm 120km CWDM SFP Fiber Module GSC-12xx-12C(D) for optical transmission systems

Large Image :  1.25Gbps 1550nm 120km CWDM SFP Fiber Module GSC-12xx-12C(D) for optical transmission systems

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GSC-12xx-12C(D)
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: 1. Neutral Package 10 or 20 pcs/Plastic Tray. 2. According to Customer's request.
Delivery Time: 1~4 working days after payment
Payment Terms: T/T, L/C
Supply Ability: 60,000pcs per month
Detailed Product Description
Product Name: CWDM SFP Optical Transceiver Data Rate: 1.25G
Wavelength: 1550nm Distance: 120KM
Connector: LC Certificates: CE RoHS FCC
High Light:

sfp optical transceivers

,

sfp fiber optic transceiver

1.25Gbps 1550nm 120km CWDM SFP Optical Transceiver GSC-12xx-12C(D) for optical transmission systems



GSC-12xx-12C(D)

1.25Gbps CWDM SFP Optical Transceiver, 120km Reach



Features:

♦ Data-rate of 1.25Gbps operation

♦ 18 CWDM DFB wavelengths laser and APD photodetector for 80km transmission

♦ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

♦ Digital Diagnostic Monitoring: Internal Calibration or External Calibration

♦ Compatible with SONET OC-24-LR-1

♦ Compatible with RoHS

♦ +3.3V single power supply

♦ Operating case temperature range of 0°C to +70°C(Commercial)



Applications:

♦ Gigabit Ethernet

♦ Fiber Channel

♦ Switch to Switch interface

♦ Switched backplane applications

♦ Router/Server interface

♦ Other optical transmission systems



Description:

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 120km transmission distance with SMF.
The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

1.25Gbps 1550nm 120km CWDM SFP Fiber Module GSC-12xx-12C(D) for optical transmission systems 0



Absolute Maximum Ratings

Table 1 - Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Ts -40 +85 °C
Operating Humidity - 5 85 %



Recommended Operating Conditions

Table 2 - Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0   +70 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Supply Current Icc     300 mA
Data Rate     1.25   Gbps





GSC-12xx-12C(D)

See table3 below for “xx” values

Table3 -λC Wavelength Guide

λC Wavelength Guide
Code λC Unit Code λC Unit
45 1450 nm 55 1550 nm
47 1470 nm 57 1570 nm
49 1490 nm 59 1590 nm
51 1510 nm 61 1610 nm
53 1530 nm





Optical and Electrical Characteristics

GSC-12xx-12C(D):(CWDM and APD, 120km Reach)

Table 4 - Optical and Electrical Characteristics

Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc λc-6.5 λc λc+6.5 nm
Spectral Width (-20dB) ∆λ     1 nm
Side Mode Suppression Ratio SMSR 30     dB
Average Output Power Pout 0   5 dBm 1
Extinction Ratio ER 9     dB
Optical Rise/Fall Time (20%~80%) tr/tf     0.26 ns
Data Input Swing Differential VIN 400   1800 mV 2
Input Differential Impedance ZIN 90 100 110 Ω
TX Disable Disable   2.0   Vcc V
Enable   0   0.8 V
TX Fault Fault   2.0   Vcc V
Normal   0   0.8 V
Receiver
Receiver Sensitivity       -31 dBm 3
  Receiver Overload   -9     dBm 3
  LOS De-Assert LOSD     -31 dBm
  LOS Assert LOSA -35     dBm
  LOS Hysteresis   1   4 dB
  Data Output Swing Differential Vout 370   1800 mV 4




LOS

High 2.0   Vcc V
  Low     0.8 V

Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Internally AC-coupled.



Timing and Electrical

Table 5 - Timing and Electrical

Parameter Symbol Min Typical Max Unit
Tx Disable Negate Time t_on     1 ms
Tx Disable Assert Time t_off     10 µs
Time To Initialize, including Reset of Tx Fault t_init     300 ms
Tx Fault Assert Time t_fault     100 µs
Tx Disable To Reset t_reset 10     µs
LOS Assert Time t_loss_on     100 µs
LOS De-assert Time t_loss_off     100 µs
Serial ID Clock Rate f_serial_clock     400 KHz
MOD_DEF (0:2)-High VH 2   Vcc V
MOD_DEF (0:2)-Low VL     0.8 V



Diagnostics

Table 5 – Diagnostics Specification

Parameter Range Unit Accuracy Calibration
Temperature 0 to +70 °C ±3°C Internal / External
Voltage 3.0 to 3.6 V ±3% Internal / External
Bias Current 0 to 100 mA ±10% Internal / External
TX Power 0 to +5 dBm ±3dB Internal / External
RX Power -30 to -9 dBm ±3dB Internal / External





Mechanical Dimensions



1.25Gbps 1550nm 120km CWDM SFP Fiber Module GSC-12xx-12C(D) for optical transmission systems 1



Ordering Information::

Part Number Product Description
GSC-12xx-12C CWDM 1270nm~1610nm, 1.25Gbps, 120km, 0ºC ~ +70ºC
GSC-12xx-12CD CWDM 1270nm~1610nm, 1.25Gbps, 120km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring
