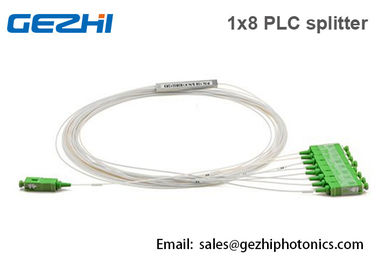

1x8 Blockless Fiber PLC Splitter Mini Size Even Coupling Ratio 1meter SC/APC

1x8 Blockless Fiber PLC Splitter Mini Size Even Coupling Ratio 1meter SC/APC
1x8 Blockless Fiber PLC Splitter Mini Size Even Coupling Ratio 1meter SC/APC 1x8 Blockless Fiber PLC Splitter Mini Size Even Coupling Ratio 1meter SC/APC 1x8 Blockless Fiber PLC Splitter Mini Size Even Coupling Ratio 1meter SC/APC 1x8 Blockless Fiber PLC Splitter Mini Size Even Coupling Ratio 1meter SC/APC

Large Image :  1x8 Blockless Fiber PLC Splitter Mini Size Even Coupling Ratio 1meter SC/APC

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE/FCC/RoHS/TUV/UL
Model Number: GZ-1x8 PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Get Latest Price
Packaging Details: 2pcs in a foam with paper Box
Delivery Time: 2~7working days
Supply Ability: 80000pcs per month
Detailed Product Description
Product Name: Optical Splitter Wavelength: 1260~1620nm
Type: 1x8 Package: ABS Box
Connector: LC/SC/FC/ST (PC Or APC) Application: Optical Signal Distribution
High Light:

fiber optic beam splitter

,

fiber optic cable splitter

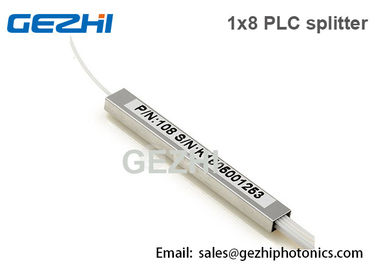

1x8 Blockless Fiber PLC Splitter Mini size stainless steel tube 1meter SC/APC



1 input and 8 output fibers with an even split ratio, SC/APC, 900μm fiber



GEZHi 1x8 Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



GEZHI Photonics PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. GEZHI provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 bare type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.

The 1x8 PLC splitters with SC/APC Connector Device are used for small space that can be easily placed in a formal joint boxes and splice closure. In order to facilitate welding, it does not need specially designed for space reserved.



The 1×8 Blockless Fiber PLC Splitter supports G.657A1 Fiber, 900μm input and output fiber, and SC, LC, FC & ST connectors for choice.



Features:

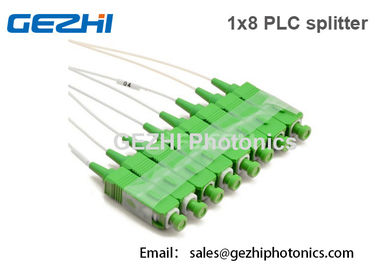

  • Configuration Type: 1x8, SC/APC connector
  • Good channel-to-channel Uniformity
  • 900μm ITU G.657A1 for fiber input/ output
  • High Polarization Extinction Ratio
  • Low Input Polarization Sensitivity, Insertion loss≤10.7dB, PDL≤0.3dB
  • Compact design, Custom and Rugged Packaging Available
  • Operating temperature : – 40 to 85°C
  • Operating bandwidth: 1260- 1650nm
  • Telcorida GR-1209/ 1221 Qualified

Application

  • Optical Signal Distribution
  • Data Communications
  • LAN and CATV System
  • FTTX Deployment
  • FTTH Network
  • Passive Optical Networks (PON)
  • Measuring System and Laser System
  • Outside Plant Equipments
  • DWDM and CWDM systems


1x8 PLC Splitter with SC/APC ​Specification

Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.2/7.4 10.3/10.7 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.0 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.1 0.1 0.1 0.20 0.25 0.30 0.4
Return Loss (dB)(P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.3 0.5 0.5 0.5

Temperature Stability

(-40~85 ℃)(dB)

0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (℃) -40~80
Storage Temperature (℃) -40~85
Device Dimension (mm) 40×4×4 40×4×4 40×4×4 50×7×4 50×7×4 60×12×4 N/A
Module Dimension (mm) 100×80×10 120×80×18 141×115×18
Mini-Module Dimension (mm) 60×4×4 60×7×4 60×7×4 60×12×4 80×20×6 100×40×6 N/A



1x8 PLC Splitter with SC/APC connector Dimensions



1x8 Blockless Fiber PLC Splitter Mini Size Even Coupling Ratio 1meter SC/APC 0



Accessories for Complete Outdoor 1×8 PLC Splitter
Fs 20.jpg


A: Blockless PLC Splitter
B: Outdoor Fiber Distribution Box
C: Fiber Adapter
D: 8-Fiber Pigitail for Output
E: Fiber Pigitail for Input
