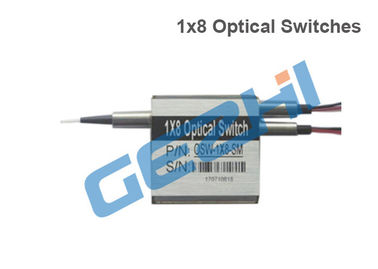

Small size 1x8 Mechanical Fiberoptic Switch with LC/UPC connector
Mini 1×8 T type Optical Switches
Description
GEZHI Photonics’ Mini 1×8 T type Mechanical Fiber Optic Switch (1×8 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
|
Features Compact design, Miniature size Short switching time Bi-directionalLow optical distortions Low cross talk, Low Insertion Loss Wide operating wavelength Range |
Applications R&D in Laboratory System monitoring Metropolitan Area Network Network protection and restoration Instrumentation, testing, and measurement |
Technical Paremeter
| Mini 1×8 T Type Switch | Unit | Typical |
| Operation Wavelength | nm | 850nm or 1260~1650nm |
| Insertion Loss | dB | <1.0(MM), <1.2(SM) |
| Wavelength Dependent Loss | dB | <0.25(MM), <0.30(SM) |
| Polarization Dependent Loss | dB | <0.1 |
| Return Loss | dB | MM:>35, SM: >55 |
| Cross Talk | dB | MM:>40, SM: >55 |
| Switching Time | ms | Typical: 4 Max:10 |
| Repeatability | dB | <±0.02 |
| Durability | Cycles | >10 Million |
| Switching Type | Latching / Non-Latching | |
| Optical Power Handling | mW | <500mW |
| Operating Voltage | VDC | 3V or 5V |
| Operating Temperature | ℃ | 0~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Fiber Type | / | SM/MM Fiber |
| Package Dimension | mm | 35L x 35W x 9H |
Pins
Dimensions
Electric
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 V | 22.2(±10%) mA | 202.5(±10%) Ω |
| 5V non-latching | 4.5~5.5 V | 31(±10%) mA | 145(±10%) Ω |
| 3V latching | 2.7~3.3 V | 33.3(±10%) mA | 90(±10%) Ω |
| 3V non-latching | 2.7~3.3 V | 46.7(±10%) mA | 64.2(±10%) Ω |
Ordering Information
| X | XX | X | X | XX | XX | X |
| Mode | Wavelength | Voltage Type | Control Model | Fiber Diameter | Fiber Length | Connector |
|
S=SM 9/125 M5=MM 50/125 M6=MM 62.5/125 |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
25=250um 90=900um |
05=0.5m 10=1.0m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
